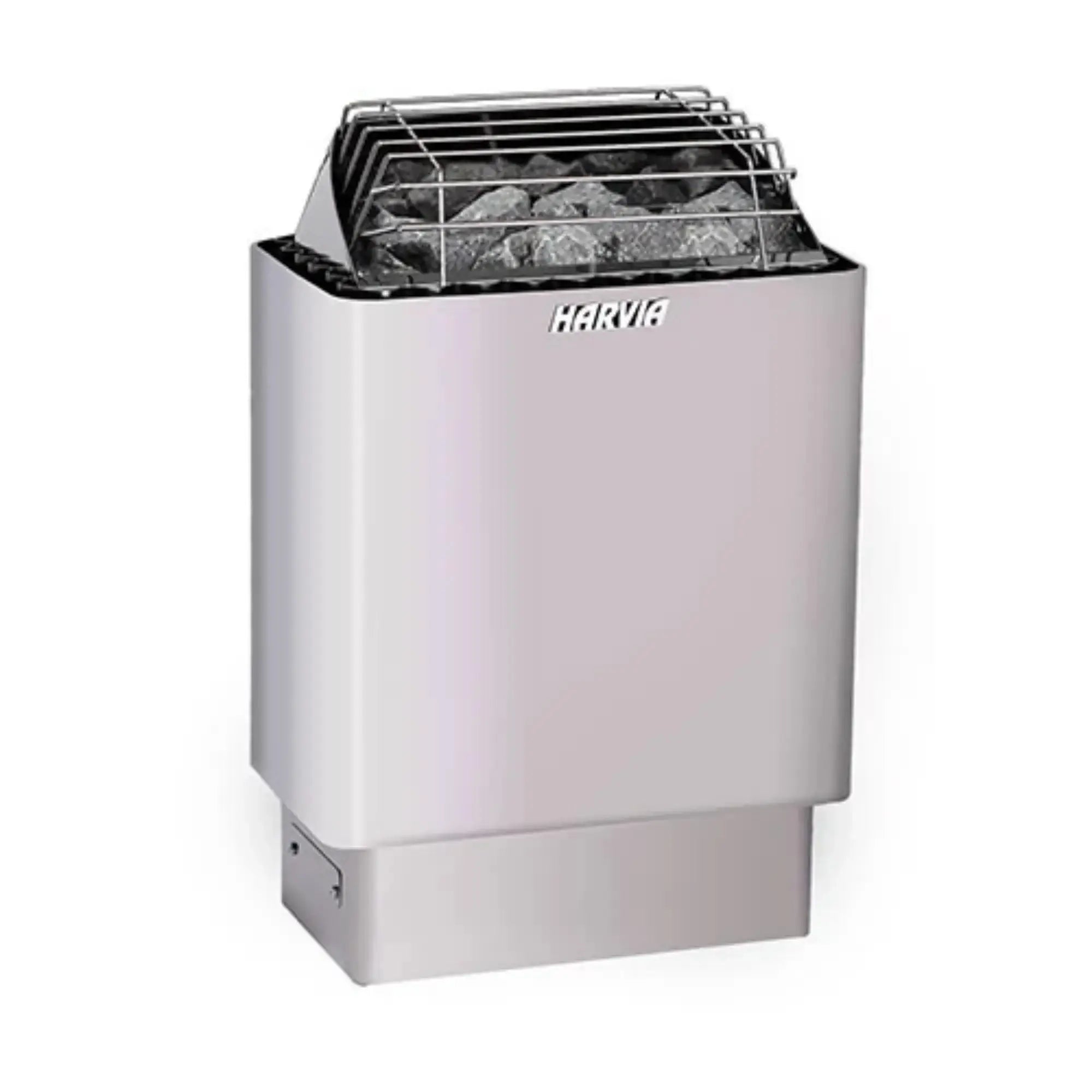

Harvia KIP80W 8 kW Electric Sauna Heater
Choose options
- Description
- What's Included
- Required to Operate
- Product Specifications
- Electrical Requirements
- Sizing
- Installation & Use Notes
- FAQs
- Downloads
The Harvia KIP80W is an 8 kW wall-mounted electric sauna heater for rooms of 250–425 adjusted cubic feet running on 208VAC 3PH or 240VAC 1PH. It takes 44 lb of 5-10cm sauna stones (sold separately). It requires a separate Harvia control unit, sold separately.
The Harvia KIP is the heater most home saunas end up with, and for good reason: it is a compact, wall-hung stainless steel unit that clears the floor completely, holds 44 lb of stones, and is available in the exact power steps that residential rooms need. It is also the only Harvia residential line offered both with built-in controls and as a bare heater for use with a separate wall-mounted controller.
- Dual wall keeps exterior cool to the touch
- Industrial grade, serviceable heating elements
- Direct rock-to-heating element contact

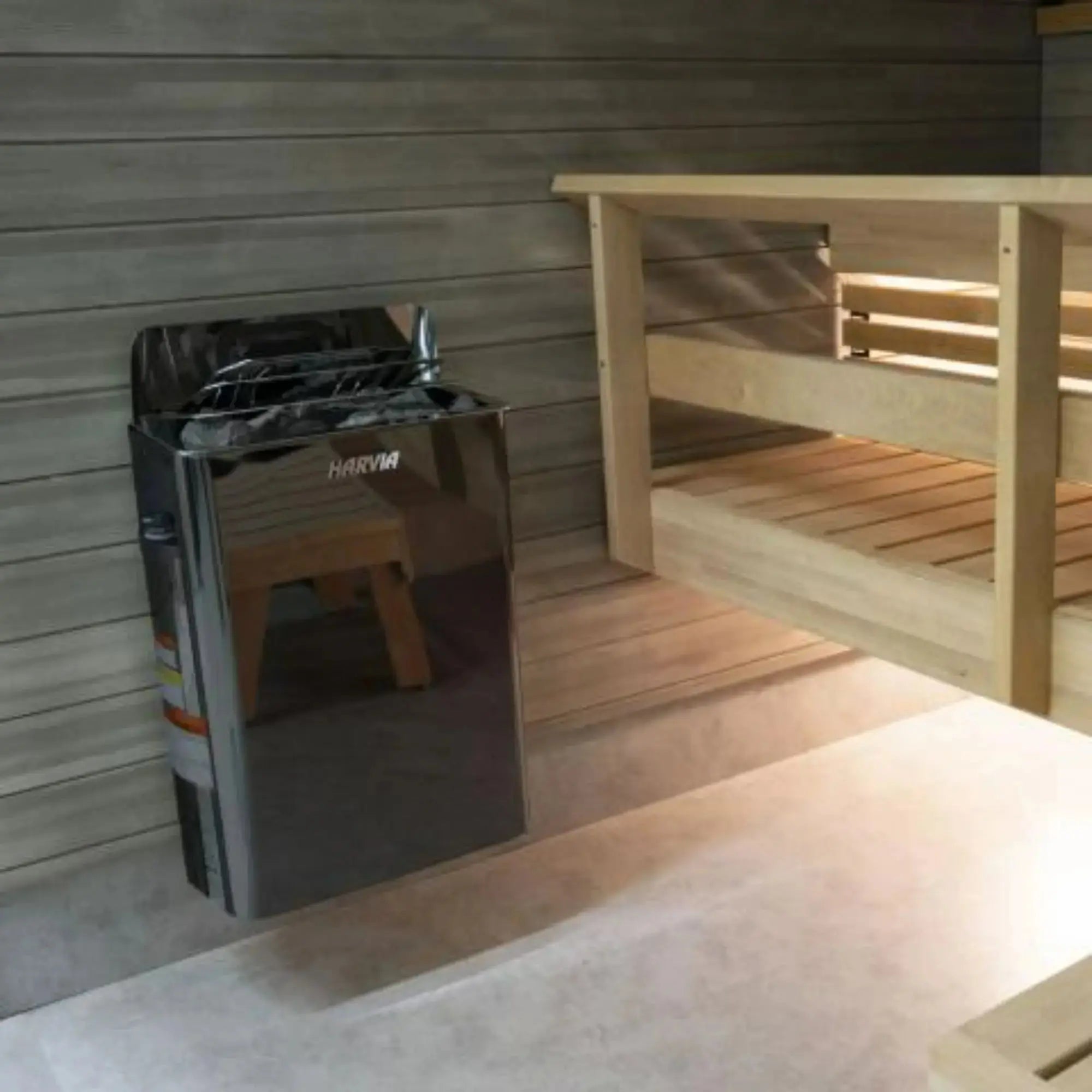

- Wall-mounted — keeps the floor clear for cleaning and drainage
- Offered with built-in controls (B) or for use with a separate Xenio control (W)
Sauna Heater, Installation and Operation Manual
These are not included with the heater. You need them before the sauna will run.
Sauna Stones44 lb — Harvia specifies 1 × 44 lb boxes of Harvia AC3000. Never run the unit empty. Control Unit
Harvia Xenio CX170 (15 ft sensor cable, 240V 1PH) or Harvia Xenio CX170 (15 ft sensor cable, 208V 3PH). Mounts outside the hot room. This heater cannot run without one. Electrical
A dedicated hardwired circuit, installed by a licensed electrician.
| Harvia Part Number | JH80WU1MIUL / JH80WU1IUL / JH80WU3IUL |
| Power Output | 8 kW |
| Sauna Room Volume | 250–425 adjusted cu ft |
| Stone Capacity | 44 lbs (20 kg) |
| Recommended Stones | Harvia AC3000 |
| Maximum Temperature | 194 °F (90 °C) |
| Color / Finish | Graphite Black, Stainless Steel |
| Material | Steel |
| Dimensions (W × D × H) | 16" (410mm) × 11" (280mm) × 24" (600mm) |
| Weight (Empty) | 30.4 lbs (13.8 kg) |
| Weight Loaded with Stones | approx. 74 lbs |
| Installation | Wall Mount |
| Controls | Not included — requires Harvia Xenio CX170 (15 ft sensor cable, 240V 1PH) or Harvia Xenio CX170 (15 ft sensor cable, 208V 3PH) |
| Certification | CE, EAC, UL |
| Warranty | 2 years (consumer use, +1 year if registered with Harvia); 2 years (commercial use) |
| Ships | Parcel |
| Made In | Finland |
| Part Number | Power | Voltage | Phase | Rated Amps | Line Fuse |
|---|---|---|---|---|---|
| JH80WU1MIUL | 8 kW | 240VAC | 1PH | 33.3 A | 40A |
| JH80WU1IUL | 8 kW | 240VAC | 1PH | 33.3 A | 40A |
| JH80WU3IUL | 8 kW | 208VAC | 3PH | 33.3 A | See manual |
Hardwired on a dedicated circuit. Not a plug-in appliance. Who Installs It
A licensed electrician sizes the breaker and conductors from the nameplate and installation manual under the current NEC. Line Fuse
Harvia's published line-fuse value for this model does not agree with its own rated amperage, so we have not printed it. Size from the nameplate.
The Harvia KIP80W is rated for 250–425 adjusted cubic feet.
Adjusted cubic feet = width × depth × height in feet, plus 45 cu ft for every square foot of glass, tile, concrete or stone, plus 15 cu ft for every square foot of exposed log wall. A 6 × 7 ft room with a 7 ft ceiling is 294 raw cu ft — add a full-glass door and it becomes 834. Always size to the adjusted number.
| Model | Output | Room Volume | Stones | Rated Amps |
|---|---|---|---|---|
| KIP45W | 4.5 kW | 100–210 cu ft | 44 lbs | 18.8 |
| KIP60W | 6 kW | 170–300 cu ft | 44 lbs | 25 |
| KIP80W | 8 kW | 250–425 cu ft | 44 lbs | 33.3 |
- Mount to the clearances given in the installation manual. The temperature sensor goes on the wall above the heater, at the height the manual specifies.

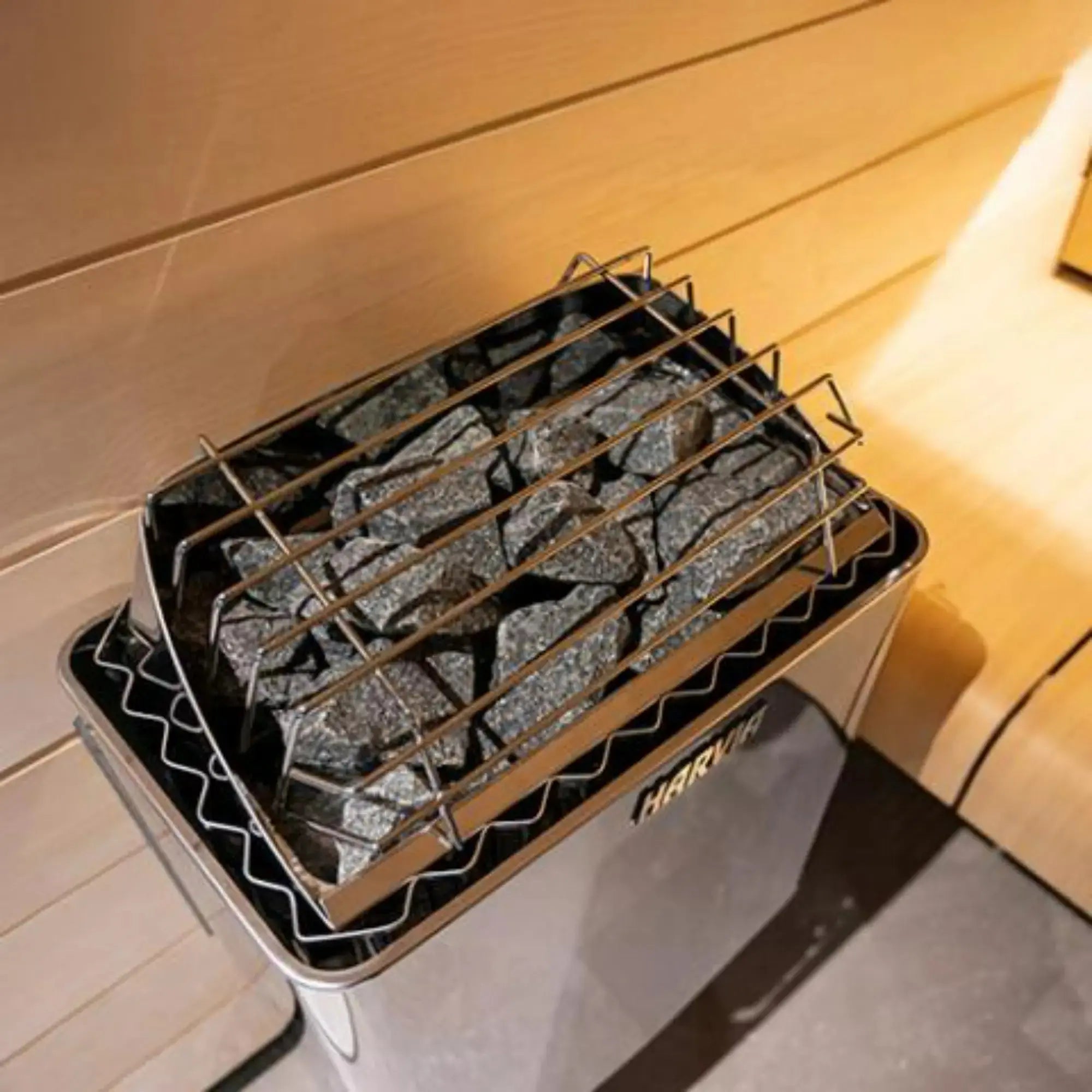

- Load the stones loosely by hand, largest at the bottom, so air moves freely between them. Never run the heater with an empty or tightly packed stone space.
- Pour small ladlefuls of clean water onto the hot stones only — never onto the body, elements or controls. Mix any scented oil into the bucket first.
- Re-stack the stones once a year and replace any that have cracked or crumbled.
- Stones ship separately on their own freight because of the weight.
Does the Harvia KIP80W include a control unit?
No, and it cannot run without one. It needs a separate Harvia control unit, sold separately: Harvia Xenio CX170 (15 ft sensor cable, 240V 1PH) or Harvia Xenio CX170 (15 ft sensor cable, 208V 3PH). The control mounts outside the hot room, which is what lets you preheat the sauna before you walk in.
Can the Harvia KIP80W be plugged into a normal outlet?
No. It is a hardwired appliance on its own dedicated circuit, rated at 33.3 A. A licensed electrician sizes the breaker and conductors from the nameplate and installation manual.
How long does the Harvia KIP80W take to heat up?
Harvia does not publish a figure. A correctly sized, well-insulated room is usually ready in 30 to 60 minutes. Consistently longer than an hour normally means the heater is undersized for the room's adjusted cubic feet.
