The Harvia Cilindro PC110E is a 10.5 kW floor- or wall-mounted electric sauna heater for rooms of 141–636 adjusted cubic feet running on 240VAC 1PH. It takes 264 lb of 5-10cm sauna stones (sold separately). It requires a separate Harvia control unit, sold separately.

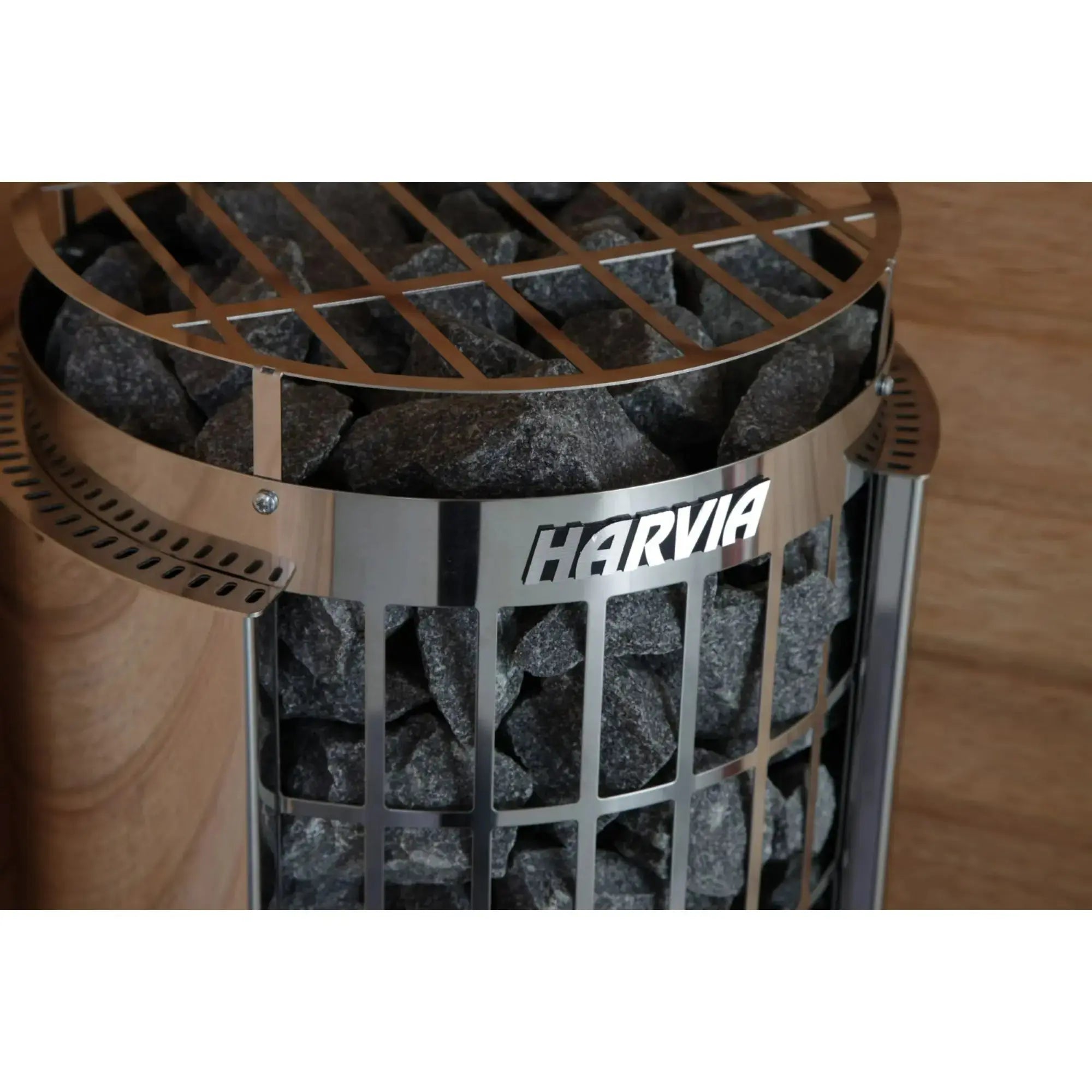

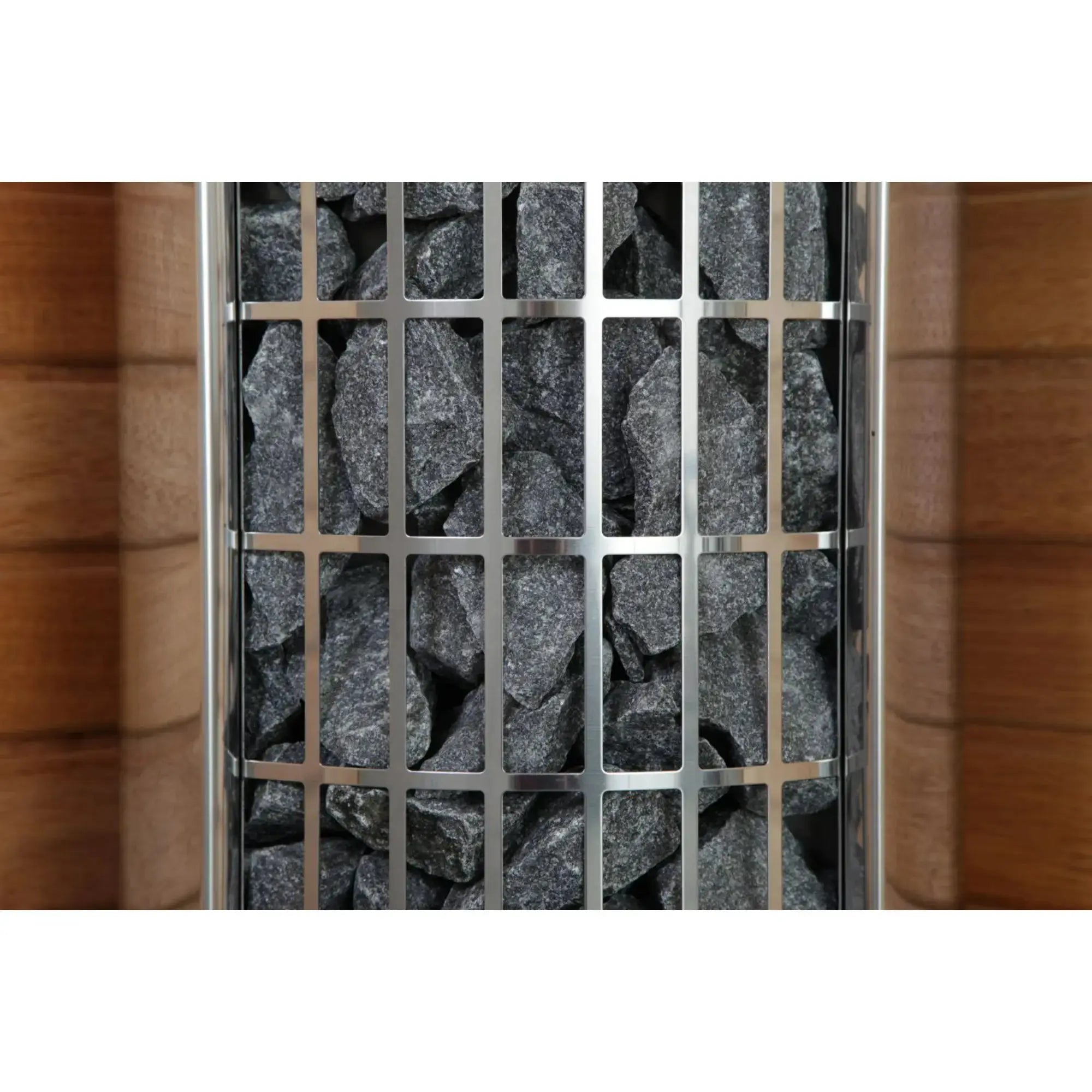

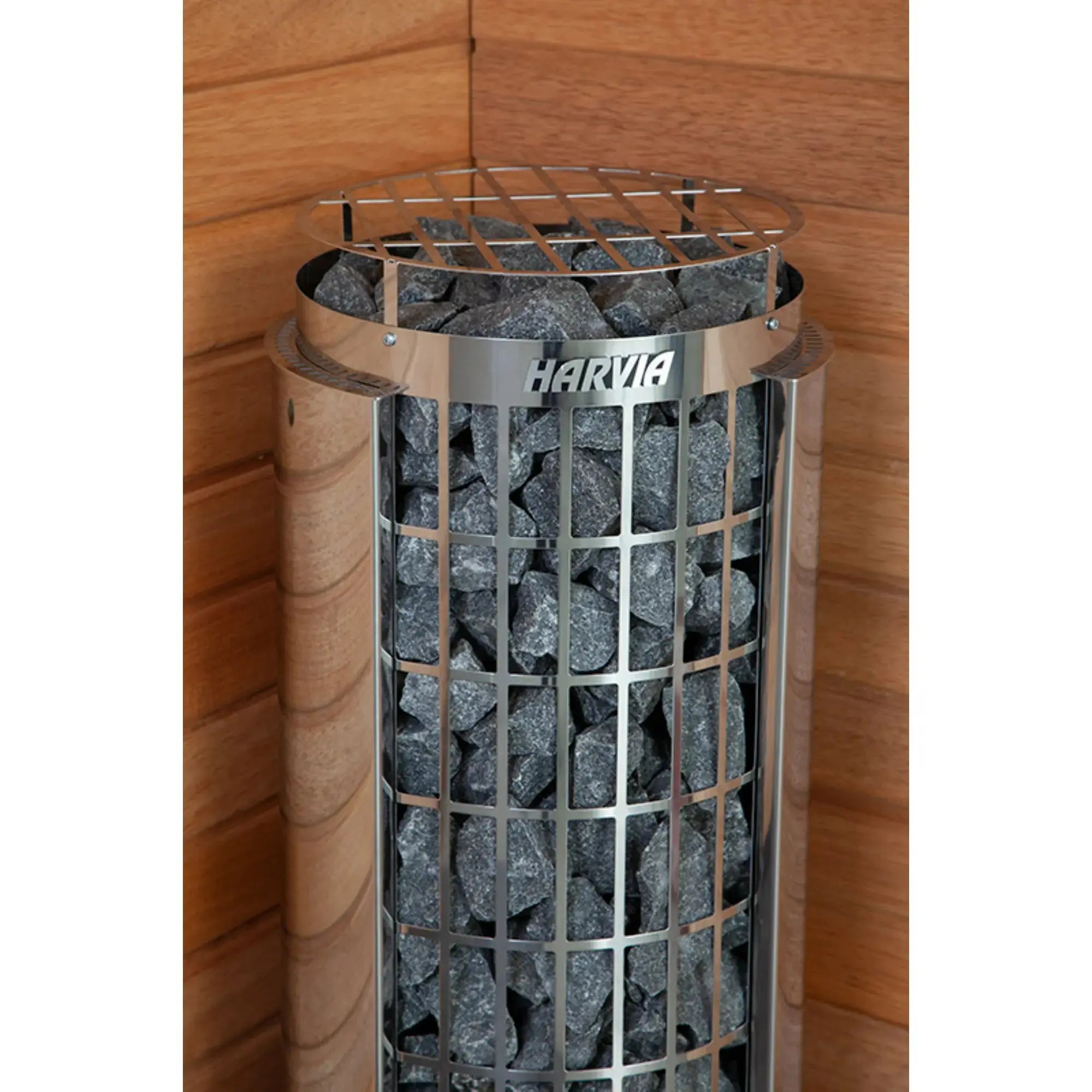

The Harvia Cilindro is a vertical pillar heater built around an unusually large stone mass held in an open, grate-like stainless steel cage. Because the stones are exposed on every side, the bather controls the steam: water thrown against the side of the column produces a soft, rolling löyly, while water poured straight down onto the top of the pillar produces the sharp, immediate burst that Finnish bathers call a hard steam.
- Side-wall or corner of room install
- Direct rock-to-heating element contact
- Industrial grade, serviceable heating elements
- Grate-style open stone cage lets you tune steam character by where you pour
- Direct rock-to-element contact for a softer, longer-lasting löyly
Sauna Heater, Temperature Sensor, Installation and Operation Manual
These are not included with the heater. You need them before the sauna will run.
Sauna Stones264 lb — Harvia specifies 6 × 44 lb boxes of Harvia AC3000. Never run the unit empty. Control Unit
Harvia Xenio CX45. Mounts outside the hot room. This heater cannot run without one. Electrical
A dedicated hardwired circuit, installed by a licensed electrician.
| Harvia Part Number | HPCS11U1HUL |
| Power Output | 10.5 kW |
| Sauna Room Volume | 141–636 adjusted cu ft |
| Stone Capacity | 264 lbs (119.7 kg) |
| Recommended Stones | Harvia AC3000 |
| Maximum Temperature | 194 °F (90 °C) |
| Color / Finish | Stainless Steel |
| Material | Steel |
| Dimensions (W × D × H) | 15" (395mm) × 14" (380mm) × 45" (1150mm) |
| Weight (Empty) | 47.4 lbs (21.5 kg) |
| Weight Loaded with Stones | approx. 311 lbs |
| Installation | Floor or Wall Mount |
| Controls | Not included — requires Harvia Xenio CX45 |
| Certification | ETL |
| Warranty | 2 years (consumer use, +1 year if registered with Harvia); 2 years (commercial use) |
| Ships | Parcel |
| Made In | Finland |
| Part Number | Power | Voltage | Phase | Rated Amps | Line Fuse |
|---|---|---|---|---|---|
| HPCS11U1HUL | 10.5 kW | 240VAC | 1PH | 43.75 A | 2x30A |
Hardwired on a dedicated circuit. Not a plug-in appliance. Who Installs It
A licensed electrician sizes the breaker and conductors from the nameplate and installation manual under the current NEC. Circuits
Fused as 2x30A, so this model needs two circuits, not one.
The Harvia Cilindro PC110E is rated for 141–636 adjusted cubic feet.
Adjusted cubic feet = width × depth × height in feet, plus 45 cu ft for every square foot of glass, tile, concrete or stone, plus 15 cu ft for every square foot of exposed log wall. A 6 × 7 ft room with a 7 ft ceiling is 294 raw cu ft — add a full-glass door and it becomes 834. Always size to the adjusted number.
| Model | Output | Room Volume | Stones | Rated Amps |
|---|---|---|---|---|
| Cilindro PC60E | 6 kW | 141–294 cu ft | 200 lbs | 25 |
| Cilindro PC80E | 8 kW | 141–431 cu ft | 200 lbs | 33.4 |
| Cilindro PC90E | 9 kW | 141–494 cu ft | 200 lbs | 37.5 |
| Cilindro PC110E | 10.5 kW | 141–636 cu ft | 264 lbs | 43.75 |
- Mount to the clearances given in the installation manual. The temperature sensor goes on the wall above the heater, at the height the manual specifies.
- Load the stones loosely by hand, largest at the bottom, so air moves freely between them. Never run the heater with an empty or tightly packed stone space.
- Pour small ladlefuls of clean water onto the hot stones only — never onto the body, elements or controls. Mix any scented oil into the bucket first.
- Re-stack the stones once a year and replace any that have cracked or crumbled.
- Stones ship separately on their own freight because of the weight.
Does the Harvia Cilindro PC110E include a control unit?
No, and it cannot run without one. It needs a separate Harvia control unit, sold separately: Harvia Xenio CX45. The control mounts outside the hot room, which is what lets you preheat the sauna before you walk in.
Can the Harvia Cilindro PC110E be plugged into a normal outlet?
No. It is a hardwired appliance on its own dedicated circuit, rated at 43.75 A. A licensed electrician sizes the breaker and conductors from the nameplate and installation manual.
How long does the Harvia Cilindro PC110E take to heat up?
Harvia does not publish a figure. A correctly sized, well-insulated room is usually ready in 30 to 60 minutes. Consistently longer than an hour normally means the heater is undersized for the room's adjusted cubic feet.
