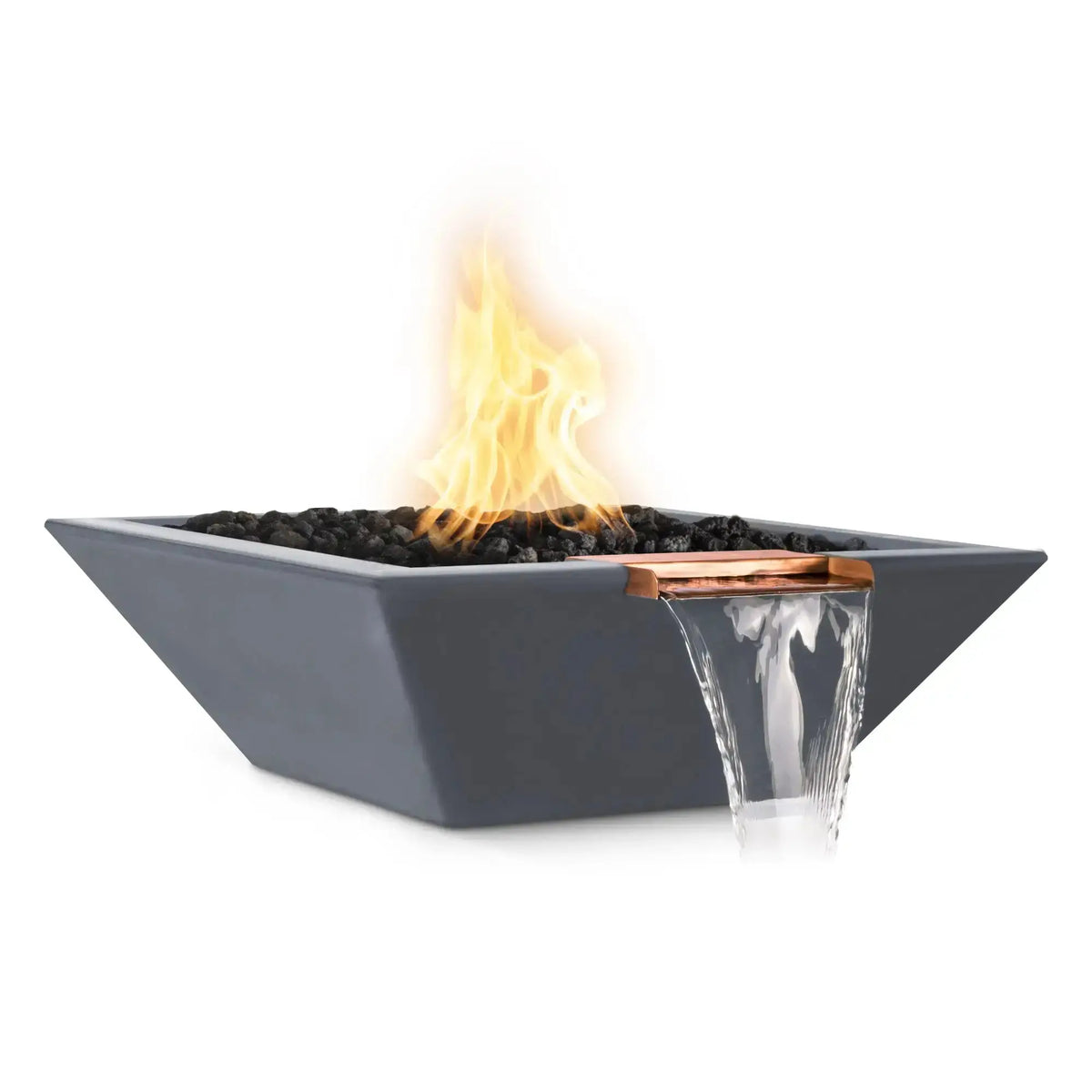

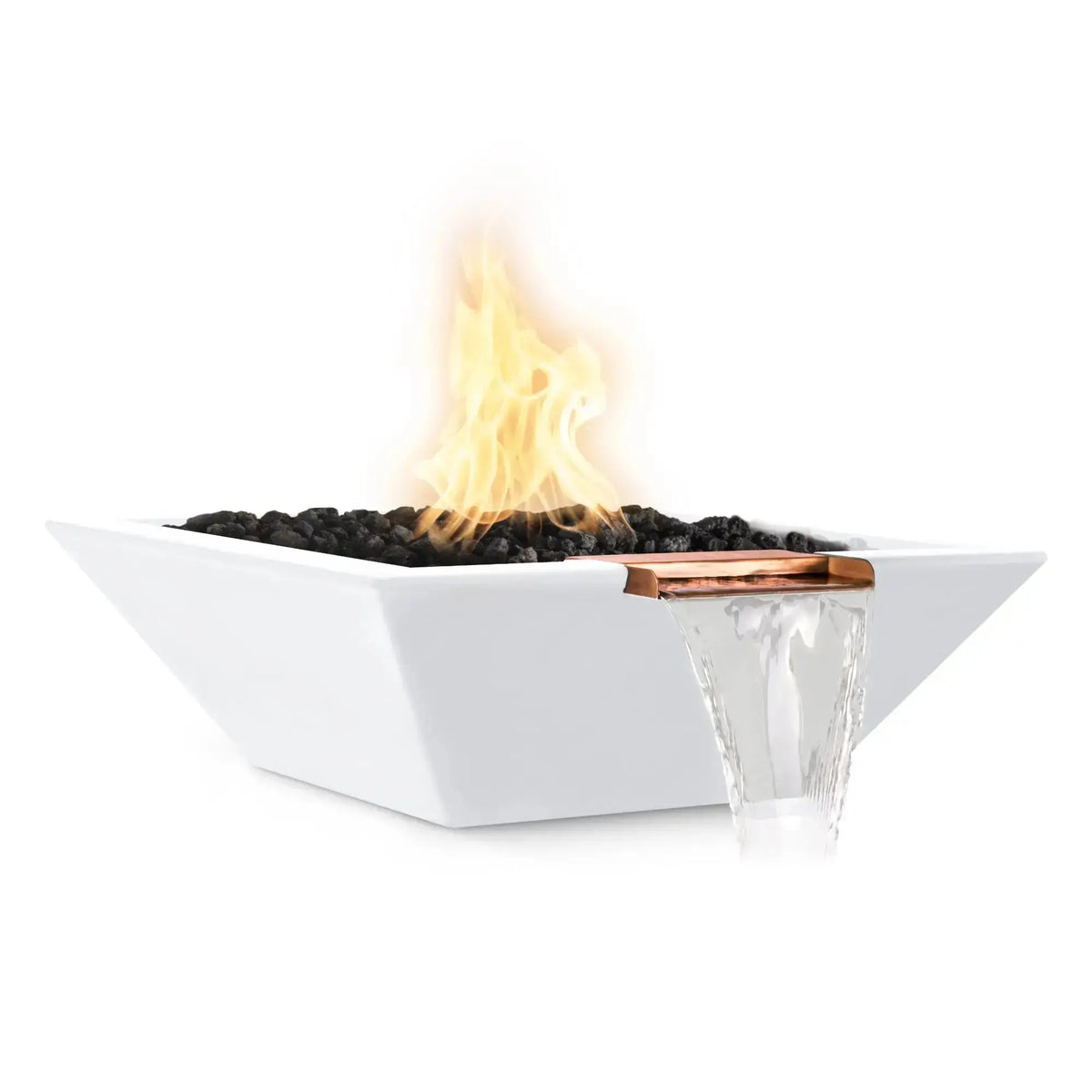

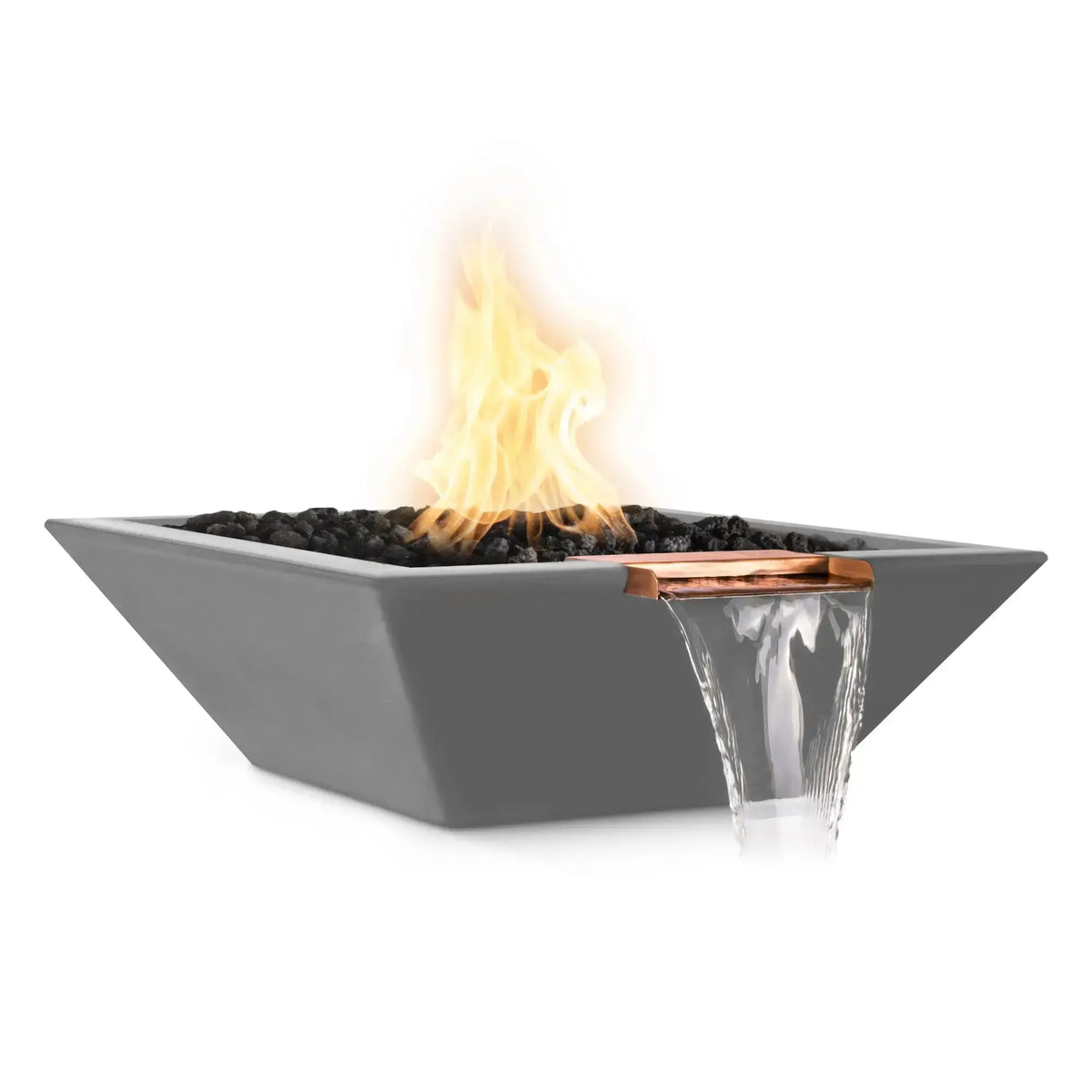

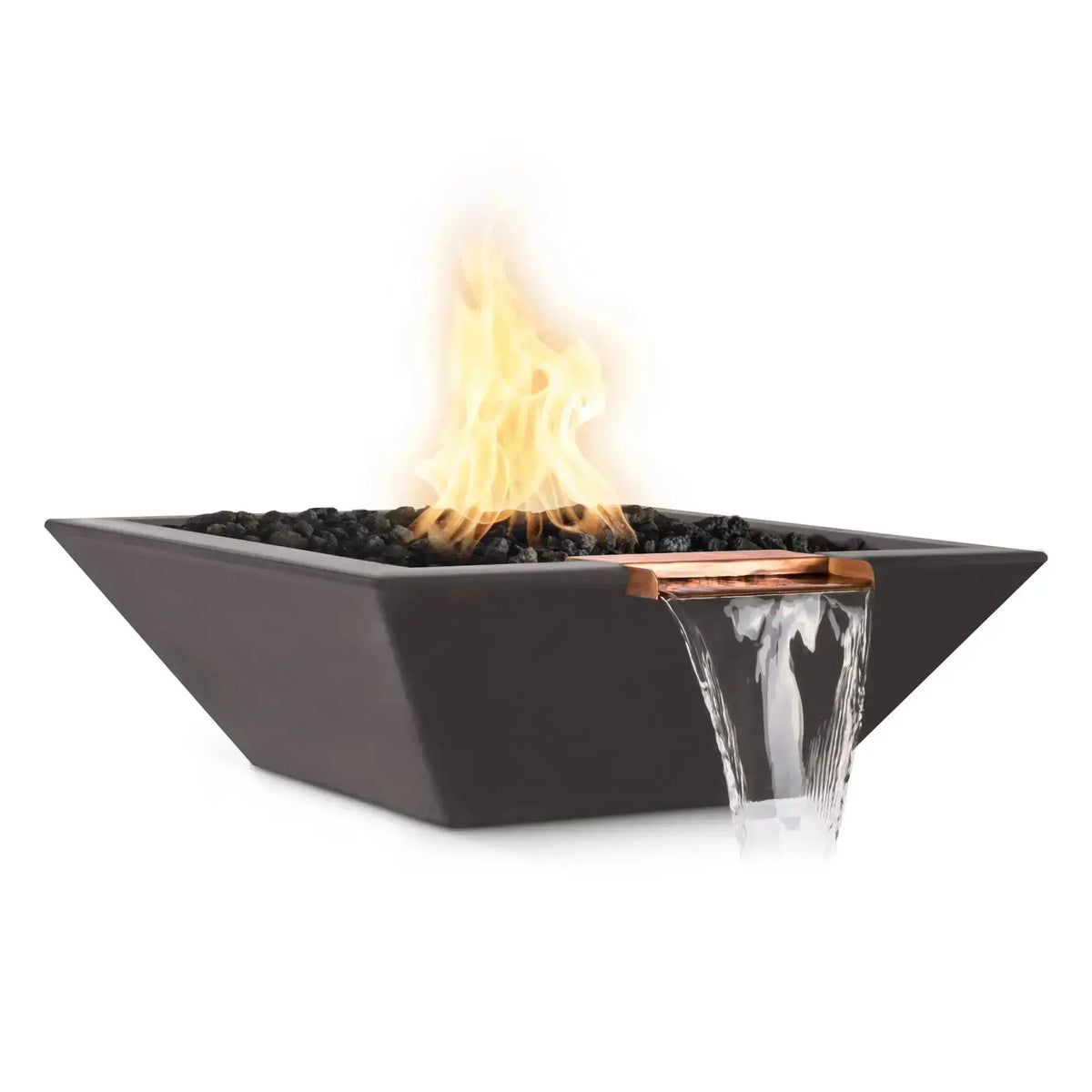

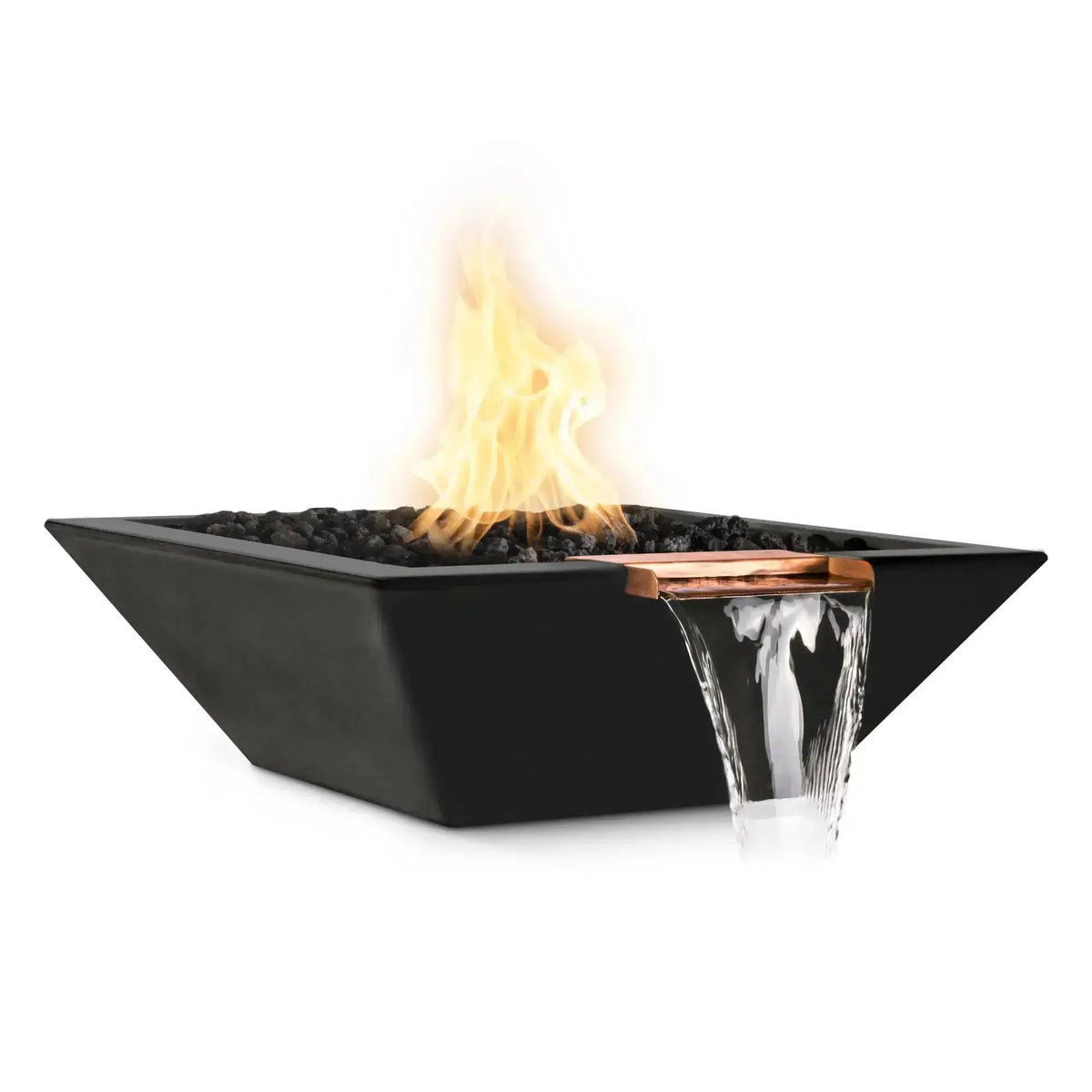

The Outdoor Plus Maya 36" Square Concrete Fire & Water Bowl - Low Voltage Electronic Ignition
— Finish your fire feature

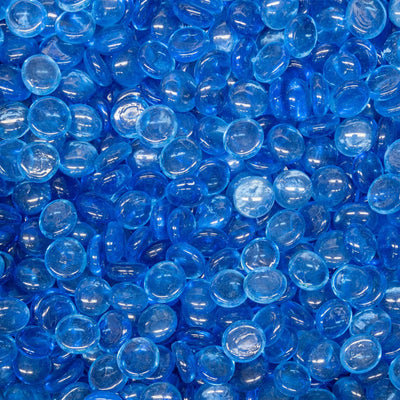

Fire media
This model takes 50 lbs. Lava rock is included, so glass is an upgrade. Pick a colour and we add the right number of bags.

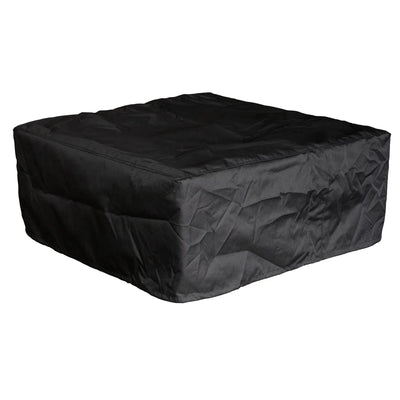

Protect it
Cut to fit this model.
Your electronic ignition

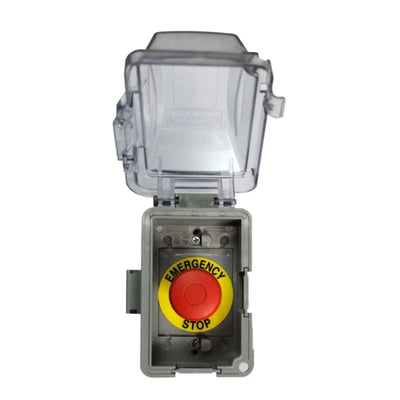

This model runs the low voltage electronic ignition, so it needs power at the install. These are the controls for the 110V side of the transformer. Commonly specified on commercial installs and wherever an inspector wants a manual shut-off.
The Outdoor Plus warrants ignition and control components only when they are bought with a pan and burner kit or a complete fire feature, so adding these alongside the fire feature keeps them covered.
For the natural gas hook-up

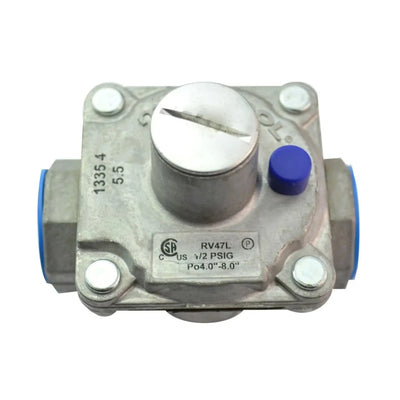

Choosing natural gas above? House gas arrives higher than a burner is built for, and a regulator brings it down to the pressure the burner expects.
Have your gas professional confirm the supply pressure and the manifold pressure your burner needs before ordering.
- Description
- Highlights
- Included with Your Fire & Water Bowl
- About the Electronic Ignition
- Product Specifications
- Optional Accessories
- Installation & Use Notes
- Downloads
- Frequently Asked Questions
- Safety Information
- Proposition 65 Warning

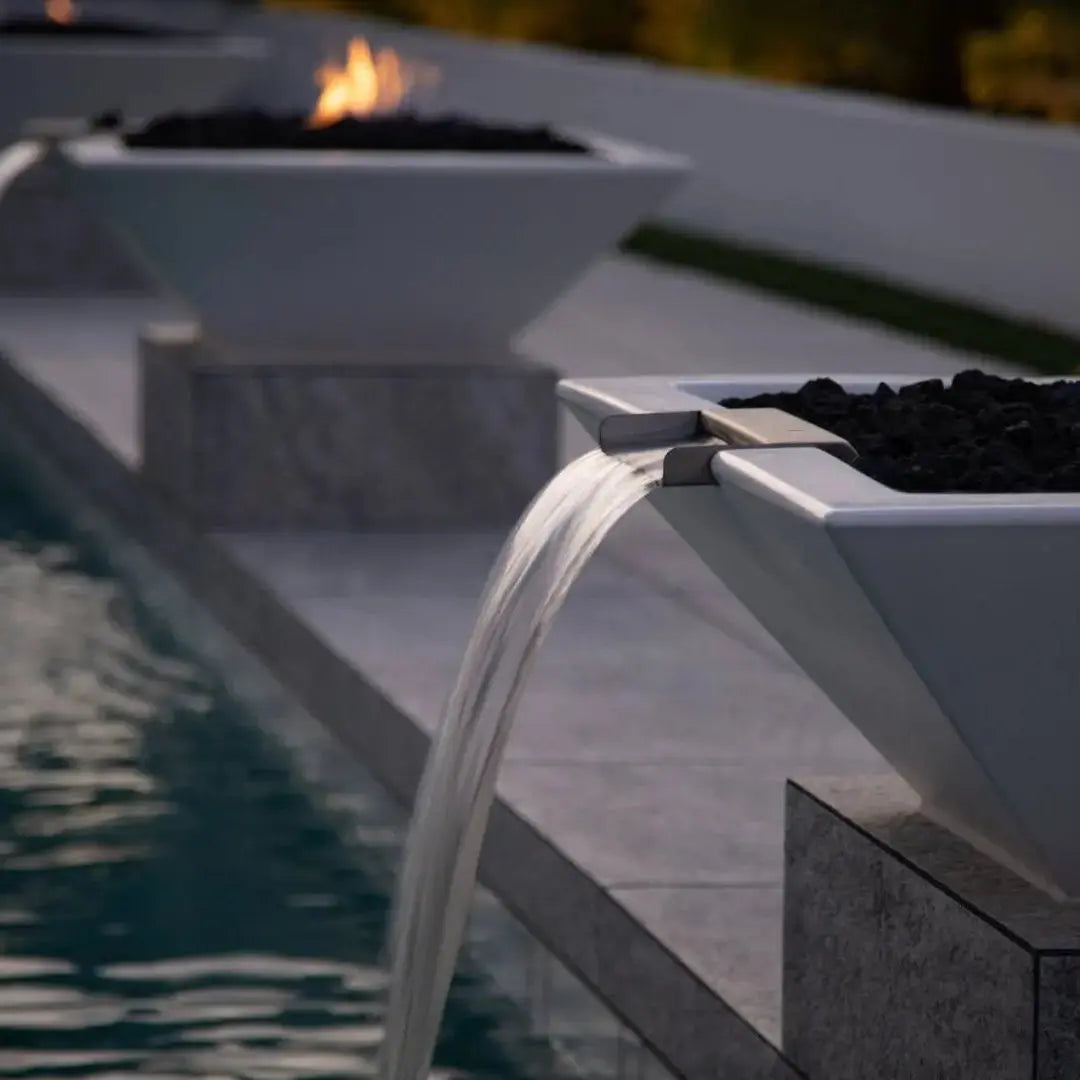

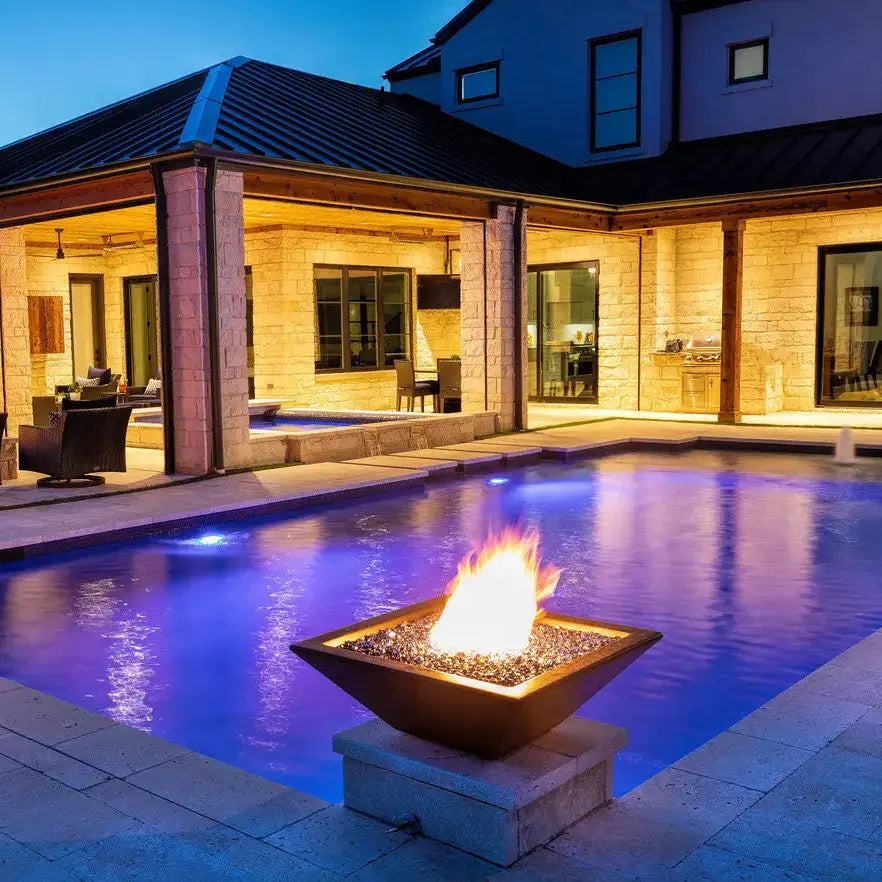

The Maya 36" pairs a clean square silhouette with the sound of moving water, giving a pool deck or patio a centerpiece that works just as well lit or unlit. A 12" stainless steel burner delivers 65,000 BTU of radiant warmth while a 10" copper scupper carries a wide sheet of water over the front face.
This configuration uses the Smart Weather low voltage electronic ignition (30VDC), which adds flame sensing and ties into pool and spa automation or a wall switch. Cast from glass-fiber-reinforced concrete (GFRC), which is stronger and roughly 50% lighter than ordinary concrete, the Maya is built to sit outdoors year-round.
- 65,000 BTU · 12" 304 stainless steel burner
- 36"L x 36"W x 12"H · 20" base width · GFRC concrete
- 10" copper scupper · 7-10 GPM water flow
- Low voltage electronic ignition (30VDC) with flame sensing
- Works with pool and spa automation or a wall switch
- Natural gas or propane · Handcrafted in the USA · 50 lbs lava rock included
Best for: Pool-side installs and automated systems.
| Overall Dimensions | 36"L x 36"W x 12"H |
| Base Width | 20" |
| Material | GFRC Concrete |
| Burner | 12" 304 Stainless Steel |
| BTU Output | 65,000 BTU |
| Ignition | Low Voltage Electronic (30VDC), requires power |
| Copper Scupper | 10" Width |
| Water Flow Rate | 7-10 GPM |
| Gas Type | Natural Gas or Propane |
| Included Media | 50 lbs Lava Rock |
| Propane Tank Storage | No |
| Country of Origin | Made in the USA |
| Warranty (Residential) | Lifetime on the burner ring and burner bars; 5 years on the stainless steel pan; 1 year on the GFRC body, copper scupper, electronics, gas valve and pilot assembly |
| Warranty (Commercial) | 1 year on the stainless steel pan; 6 months on the electronics, gas valve and pilot assembly |
- Fire glass, an optional upgrade in place of the included lava rock
- Canvas cover
- For outdoor use only; install in accordance with local codes and applicable fuel gas and electrical codes
- Installation and service should be performed by a qualified professional
- Electrical power must be available at the installation location for the 30VDC ignition system
- The water feature requires a separate water supply and circulating pump sized for 7-10 GPM, which are not included
- Use only fire-rated media; keep the ignition and pilot areas clear of media for proper lighting and operation
- The copper scupper develops a natural patina outdoors; natural weathering of copper is not covered under warranty
- Electrodes and spark igniters are wear items and are not covered under warranty
- Warranty runs from the date of original sale or shipment, and warranty claims require an RMA authorisation requested within 30 days
- Made to order. Orders cannot be cancelled once placed with the factory.
What power does the 30VDC ignition need?
The system runs from a GFCI-protected transformer, so electrical power has to be available at the install location. One transformer can drive up to four burners, which is why this version suits multi-bowl pool installs. Follow the low voltage ignition manual above for the wiring detail.
Can it tie into my pool automation?
Yes. The Smart Weather system is designed to work with pool and spa automation or a simple wall switch, so the bowl can be turned on from the same controller you already use.
Does the Maya run on natural gas or propane?
Both. Each Maya is built to order for the fuel you select, natural gas or liquid propane. Converting between fuels later is not a simple swap; it should be performed by a qualified gas professional using the correct orifice and components.
Can the fire and the water run at the same time?
Yes. The burner and the scupper operate independently, so you can run the flame on its own, the water on its own, or both together. The water feature draws from a separate supply and pump rather than from the gas system.
Do I need a pool to use it?

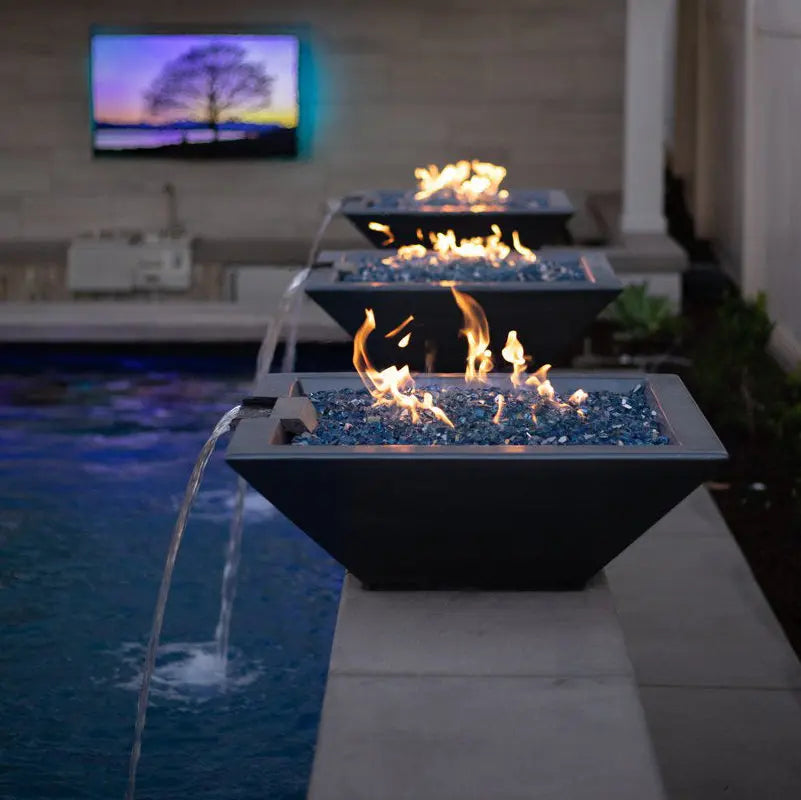

No. The Maya is most often installed at the edge of a pool so the scupper spills into the water, but it can also be plumbed to a basin or a recirculating reservoir for a patio install. Either way the water side needs a supply and a pump sized for 7-10 GPM.
Can you roast marshmallows over it?
We do not recommend it. Sugar and food drippings can clog the burner ports and stain the fire media, affecting performance. The Maya is built as a clean-burning decorative fire feature.
Gas-operated appliances and fire features must be installed in accordance with local building and fire codes. Improper installation may result in property damage or injury. Professional installation is recommended.
