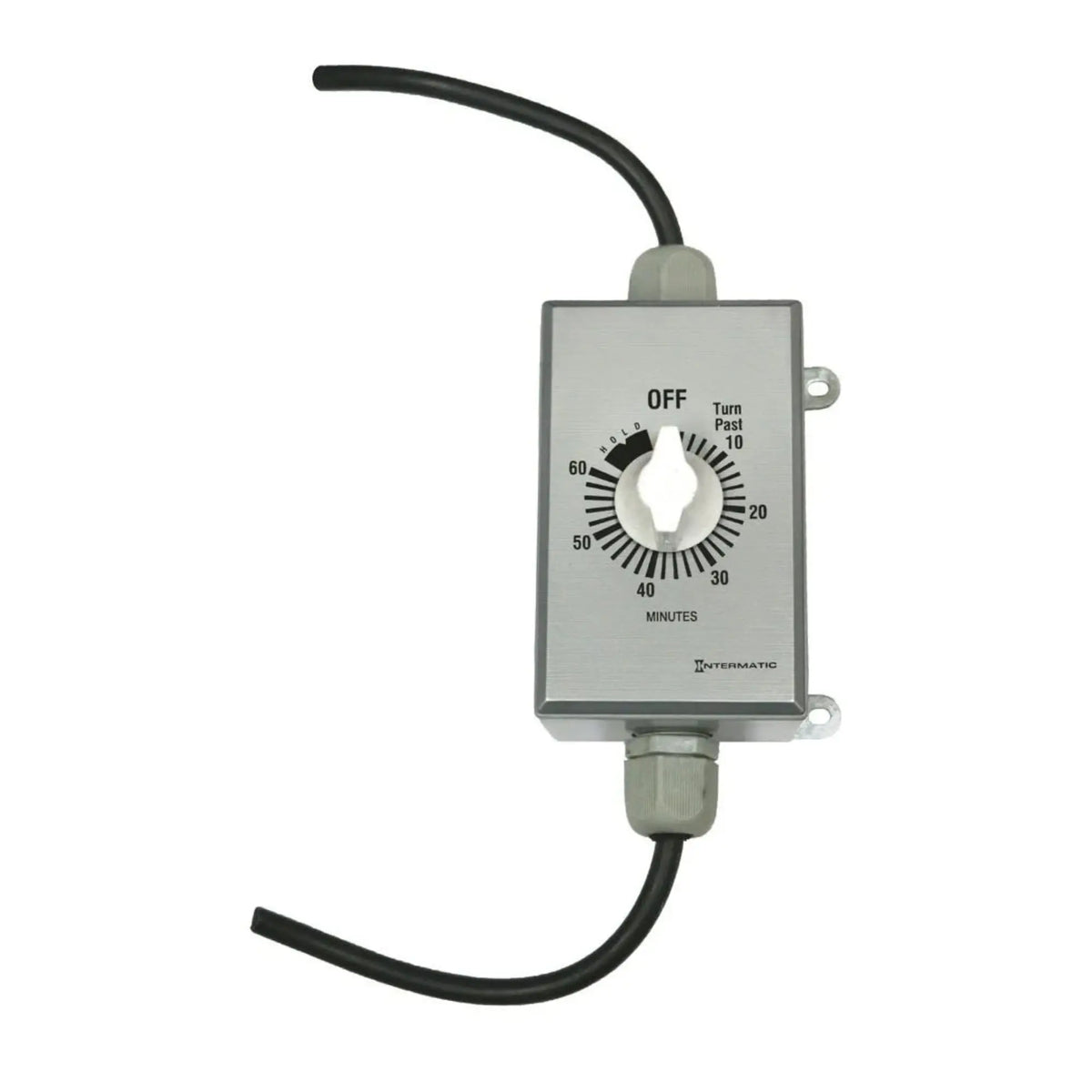

The Outdoor Plus Outdoor Rated Electrical Dial Timer - 110V - OPT-DTM

The Dial Timer is a turn-knob mechanical timer that cuts power to an electronic ignition fire feature once the set interval runs out. Turn it, walk away, and the fire feature shuts itself down rather than running on indefinitely.

It fits a single gang electrical box on the 110VAC side of the transformer and ships with 110V leads. There is an extra opening for 1/2" conduit.

• Turn-knob timer cuts 110VAC power when the interval ends
• Fits a standard single gang electrical box
• 110V leads included
• Extra opening for 1/2" conduit
• Outdoor rated
• Made in the USA

• For outdoor use only; install in accordance with local building, electrical and fuel gas codes
• Wiring should be carried out by a qualified electrician
• Suited for 110V systems only; mount on the 110VAC side of the transformer
• Not applicable to match lit fire features, which carry no electrical supply to cut
• Made to order. Orders cannot be cancelled once placed with the factory.

What is the timer for?

It stops a fire feature being left running. You turn the dial, the fire runs, and when the interval ends the timer drops power to the ignition system and the feature shuts down on its own.

Where does it mount?

In a standard single gang electrical box on the 110VAC side of the transformer. There is an extra knockout for 1/2" conduit.

Can I use it with a low voltage 30VDC system?

It switches the 110VAC feed, so it works wherever that feed powers the transformer. It is not wired into the low voltage side. Have your electrician confirm it suits your specific setup.

Is it covered by warranty if I buy it on its own?

The Outdoor Plus warrants ignition and control components only when they are bought together with a pan and burner kit or a complete fire feature. A control purchased separately falls outside that coverage.
