Cabo Linear 56" Concrete Gas Fire Pit – The Outdoor Plus
— Finish your fire feature
Fire media
This model takes 61 lbs. Lava rock is included, so glass is an upgrade. Pick a colour and we add the right number of bags.
Protect it
Cut to fit this model.
For the electronic ignition
If you choose an electronic ignition above, these are the controls for the 110V side of the transformer. Commonly specified on commercial installs and wherever an inspector wants a manual shut-off.
The Outdoor Plus warrants ignition and control components only when they are bought with a pan and burner kit or a complete fire feature, so adding these alongside the fire feature keeps them covered.
For the natural gas hook-up
Choosing natural gas above? House gas arrives higher than a burner is built for, and a regulator brings it down to the pressure the burner expects.
Have your gas professional confirm the supply pressure and the manifold pressure your burner needs before ordering.
- Description
- Highlights
- Included with Your Fire Pit
- Ignition Options
- Product Specifications
- Optional Accessories
- Installation & Use Notes
- Downloads
- Frequently Asked Questions
- Safety Information
- Proposition 65 Warning
The Cabo Linear 56" brings a bold rectangular silhouette and a smooth GFRC concrete finish to your patio, anchoring an outdoor seating area with a clean modern profile. A 65,000 BTU stainless steel burner sits in a 36" x 16" opening, giving you steady radiant warmth and a wide ribbon of flame.
Cast from glass-fiber-reinforced concrete (GFRC), which is stronger and roughly 50% lighter than ordinary concrete, the Cabo Linear is built to live outdoors year-round. Run it on natural gas or propane, choose from four ignition systems, and select your finish color.
- 65,000 BTU · 304 stainless steel burner · 36" x 16" burn area
- 56"L x 38"W x 16"H · 245 lbs · GFRC concrete
- Natural gas or propane
- 4 ignition options: Match Lit, Spark Ignition w/ Flame Sense, 30VDC, 110V Plug & Play
- 9 concrete finishes
- Handcrafted in the USA · CSA certified · Lava rock included
Best for: Simple installs with no power requirements. Spark Ignition with Flame Sense: Spark ignition with flame-sensing safety control that shuts off gas if the flame is lost.
Best for: Push-button lighting with flame monitoring. Low Voltage Electronic Ignition (30VDC): Electronic ignition powered by a 30VDC transformer. Requires 120V electrical power.
Best for: Low-voltage installs wanting electronic ignition. Plug & Play Electronic Ignition (110V): Electronic ignition for standard household power (120V typical).
Best for: Installs where 120V power is readily available.
| Overall Dimensions | 56"L x 38"W x 16"H |
| Burn Area | 36" x 16" |
| Material | GFRC Concrete |
| Burner | 304 Stainless Steel |
| BTU Output | 65,000 BTU |
| Weight | 245 lbs |
| Fire Glass (if upgrading) | 61 lbs recommended |
| Gas Type | Natural Gas or Propane |
| Propane Tank Storage | No |
| Certification | CSA Certified |
| Country of Origin | Made in the USA |
| Warranty (Residential) | Lifetime on the burner ring and burner bars; 5 years on the stainless steel pan; 1 year on the GFRC body, electronics, gas valve and pilot assembly |
| Warranty (Commercial) | 1 year on the stainless steel pan; 6 months on the electronics, gas valve and pilot assembly |

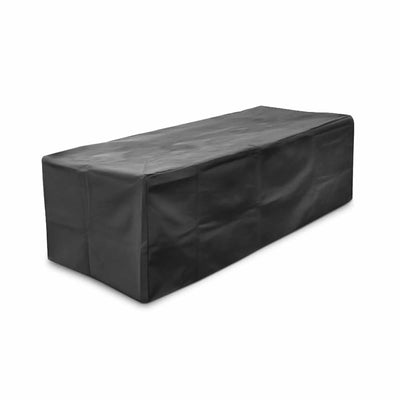

- Canvas cover

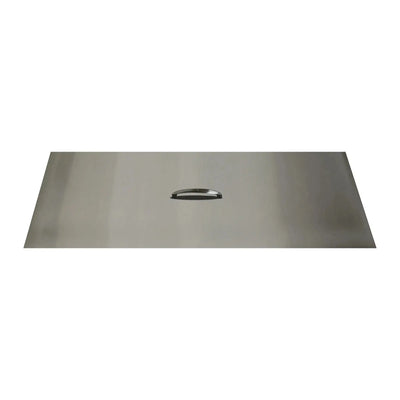

- Stainless steel burn area cover
- Fire glass — optional upgrade in place of the included lava rock
- For outdoor use only; install in accordance with local codes and applicable fuel gas and electrical codes
- Installation and service should be performed by a qualified professional
- For electronic ignition configurations, electrical power must be available at the installation location (follow the appropriate ignition manual)
- Use only fire-rated media; keep ignition and pilot areas clear of media for proper lighting and operation
- Electrodes and spark igniters are wear items and are not covered under warranty
- Warranty runs from the date of original sale or shipment, and warranty claims require an RMA authorisation requested within 30 days
- Made to order. Orders cannot be cancelled once placed with the factory.
Does the Cabo Linear run on natural gas or propane?
Both. Each Cabo Linear is built to order for the fuel you select, natural gas or liquid propane. Converting between fuels later is not a simple swap; it should be performed by a qualified gas professional using the correct orifice and components.
Where does the propane tank go?
The Cabo Linear does not have an enclosed tank compartment, so a propane build needs the tank sited outside the unit, usually in a nearby enclosure or a tank-hideaway table. If you would rather not plan around that, the natural gas configuration plumbs straight to a gas line.
Does a gas fire pit give off real heat?
Yes. At 65,000 BTU the Cabo Linear puts out noticeable radiant warmth across a seating area while staying cleaner and lower-maintenance than wood. It is designed as an ambient fire feature rather than a furnace-style patio heater.
Which ignition option should I choose?
Match Lit is the simplest, a manual key valve with no power required. Spark Ignition with Flame Sense adds push-button lighting and an automatic shutoff if the flame is lost. Low Voltage (30VDC) and Plug & Play (110V) are electronic systems; choose 110V when a standard outlet is nearby, or 30VDC for low-voltage installs. Electronic options require electrical power at the install location.
What is covered by the warranty?
The burner ring and burner bars carry a lifetime warranty, the stainless steel pan 5 years, and the GFRC body, electronics, gas valve and pilot assembly 1 year, in residential use. Commercial use is 1 year on the pan and 6 months on the electronics, gas valve and pilot assembly. Electrodes and spark igniters are wear items and are not covered, and ignition components are warranted only when bought with a pan and burner kit or a complete fire feature.
Can I use the Cabo Linear under a covered patio?
It is for outdoor use only and needs adequate overhead clearance and ventilation. Covered or partially enclosed installs must follow the ignition manual and local fuel-gas codes; propane in particular requires proper ventilation. When in doubt, have a licensed installer confirm clearances.
Can you roast marshmallows over it?
We do not recommend it. Sugar and food drippings can clog the burner ports and stain the fire media, affecting performance. The Cabo Linear is built as a clean-burning decorative fire feature.
Gas-operated appliances and fire features must be installed in accordance with local building and fire codes. Improper installation may result in property damage or injury. Professional installation is recommended.
