The Bromic Tungsten Smart-Heat 300 Series is a 26,000 BTU infrared gas patio heater that warms up to 160 sq. ft. It comes in Natural Gas or Liquid Propane, mounts on a wall or ceiling under cover, plugs into a standard 110V outlet for ignition, and works with the Bromic Affinity On/Off smart control (sold separately). It suits home patios and smaller commercial seating areas.
At a Glance- Heat output: 26,000 BTU, 3 burner tiles
- Heat coverage: Up to 160 sq. ft. (12.3ft x 13ft heat zone)
- Fuel: Natural Gas or Liquid Propane
- Power: 110V / 2A plug-in cord
- Recommended mounting height: 8-9ft
- Mounting: Wall or ceiling bracket included, ceiling poles optional
- Placement: Outdoor, covered from rain
- Finish: Matte Black
- Controls: Sold separately: Affinity On/Off or a wall switch

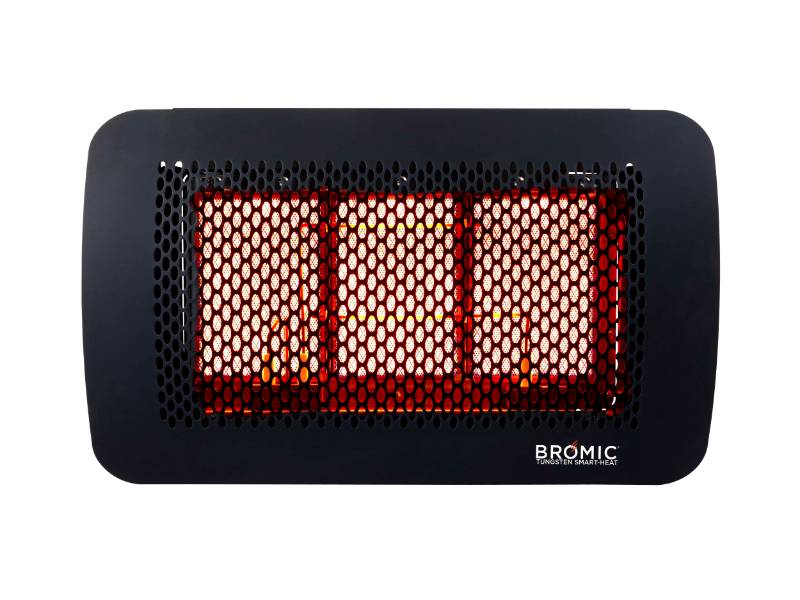

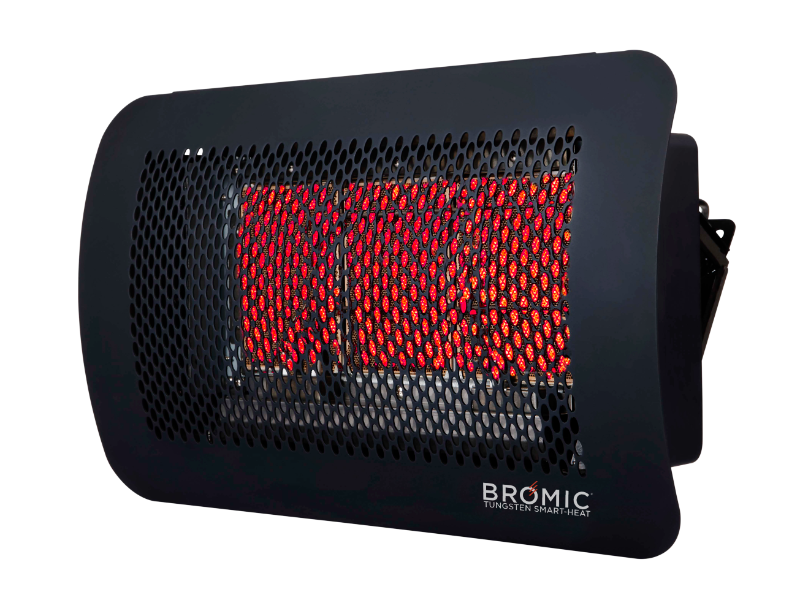

Tungsten's matte black honeycomb body gives a warm red glow, and its pivot arm lets you aim the heat. Electronic ignition with automatic re-ignition means no pilot light to manage.
Radiant gas heat for up to 160 sq. ft. Natural Gas or Propane
Available in NG and LP configurations. Wall or Ceiling Mount
Bracket included, with optional ceiling poles for 10ft 6in to 13ft 1in ceilings. 25° Pivot Arm
Bi-directional arm aims heat at your seating. Flame Failure Safety
Shuts the heater off if it fails to re-ignite. Heat Deflector Option
Cuts the ceiling clearance needed from 36in to 14in.
| Series | Tungsten Smart-Heat™ Gas 300 Series |
| Fuel Type | Natural Gas or Liquid Propane |
| Heat Output | 26,000 BTU |
| Burner Tiles | 3 |
| Heat Coverage | Up to 160 sq. ft. |
| Heat Zone | 12.3ft x 13ft |
| Recommended Mounting Height | 8-9ft |
| Finish | Matte Black |
| Model Numbers | Natural Gas: BH0210001-1; Liquid Propane: BH0210002-1 |
| Electrical Connection | 110V / 2A plug-in cord |
| Dimensions | 19.3" W × 15.9" H |
| Weight | 33 lbs |
| Minimum Floor Clearance | 96" |
| Ceiling Clearance | 36" without deflector • 14" with heat deflector |
| Side Clearance | 36" |
| Approval Certification | Intertek ETL 4009079 |
| Ingress Rating | IPX4 |
| Control Options | Sold separately: Affinity On/Off • Manual Wall Switch |
| Warranty | 2 years, excluding maintenance items: hoses and igniters (from date of purchase, original owner) |
The heater comes with a standard bracket for wall or ceiling mounting and a power cord that plugs into a 110V outlet (2 amps). For ceiling installs, choose a ceiling mount pole sized to your ceiling height, from 10ft 6in to 13ft 1in. Mount it at least 8ft above the floor. Without a deflector it needs 3ft of clearance to the ceiling and to each side; the heat deflector (BH3030011) cuts the ceiling clearance to 14in. Gas heaters are on/off only, and controls are not included and are sold separately. Switch the outlet with a standard wall switch, or add the Bromic Affinity On/Off control, which runs up to 10 gas heaters from the Bromic Heating app.
How many BTUs is the Bromic Tungsten 300 Series?
26,000 BTU from 3 burner tiles, enough to heat up to 160 square feet (a heat zone of about 12.3ft x 13ft) when mounted at 8-9ft in a covered, low-wind space. For more coverage, the Tungsten 500 Series puts out 43,000 BTU for up to 215 sq. ft.
Is it available in natural gas or propane?
Both. Choose Natural Gas or Liquid Propane at checkout. Model numbers: Natural Gas: BH0210001-1; Liquid Propane: BH0210002-1.
Does a gas patio heater need electricity?
Yes. It comes with a power cord for a standard 110V outlet and draws 2 amps for its electronic ignition. Several heaters can share one switched outlet circuit.
Can I angle the heat?
Yes. The Tungsten gas bracket has a bi-directional pivot arm that rotates 25° to each side, so you can aim the heat at your seating.
Can I install it under a covered patio?
Yes, and Bromic requires it to be protected from rain, so a covered patio is the right spot. Mount it at least 8ft above the floor with 3ft of clearance to the ceiling (14" with the heat deflector) and 3ft to each side. The space must be open-air with natural ventilation, such as a patio cover with no more than two walls; it is not approved for indoor use.
How do I control a Bromic gas heater?
Gas models are on/off only, and controls are sold separately. Plug into a switched outlet and use a wall switch, or add the Bromic Affinity On/Off control to run up to 10 gas heaters from the Bromic Heating app with timers and schedules.
Gas patio heaters must be installed by a qualified professional in accordance with local gas and building codes. Improper installation may result in property damage or injury.
