The Bromic Tungsten Smart-Heat 4000W is a hardwired electric infrared patio heater that warms up to 120 sq. ft. It mounts on a wall or ceiling, runs on 208V, 240V or 277V, and works with Bromic Affinity On/Off and Dimmer smart controls (sold separately). It suits mid-size patios, outdoor dining and commercial terraces.
At a Glance- Heat output: 4000W electric infrared, dual element
- Heat coverage: Up to 120 sq. ft.
- Power: 208V, 240V or 277V
- Recommended mounting height: 8-9ft
- Mounting: Wall or ceiling bracket included
- Weather rating: IPX4
- Finish: Black or White
- Controls: Sold separately: Affinity On/Off or Dimmer, or a wall switch

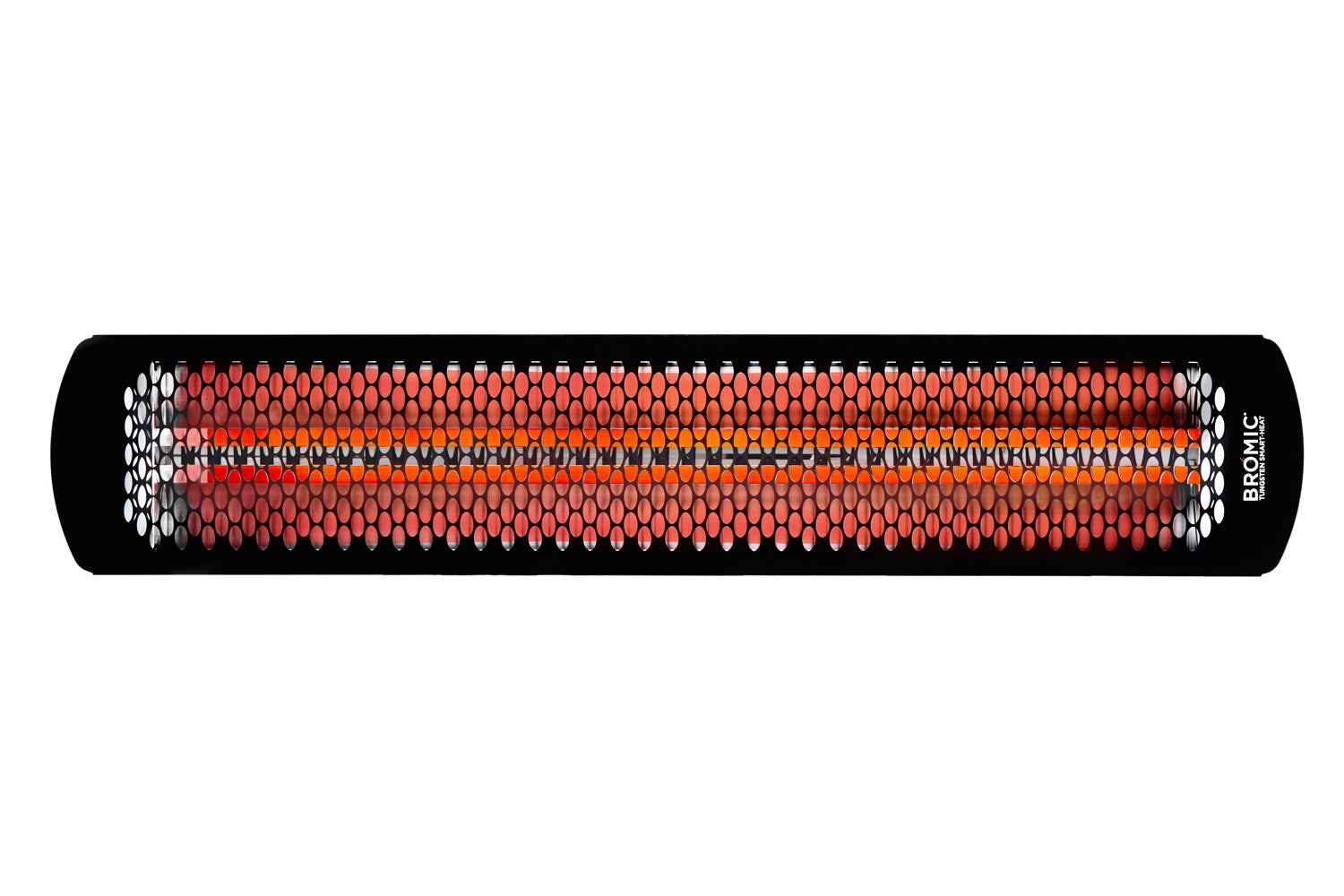

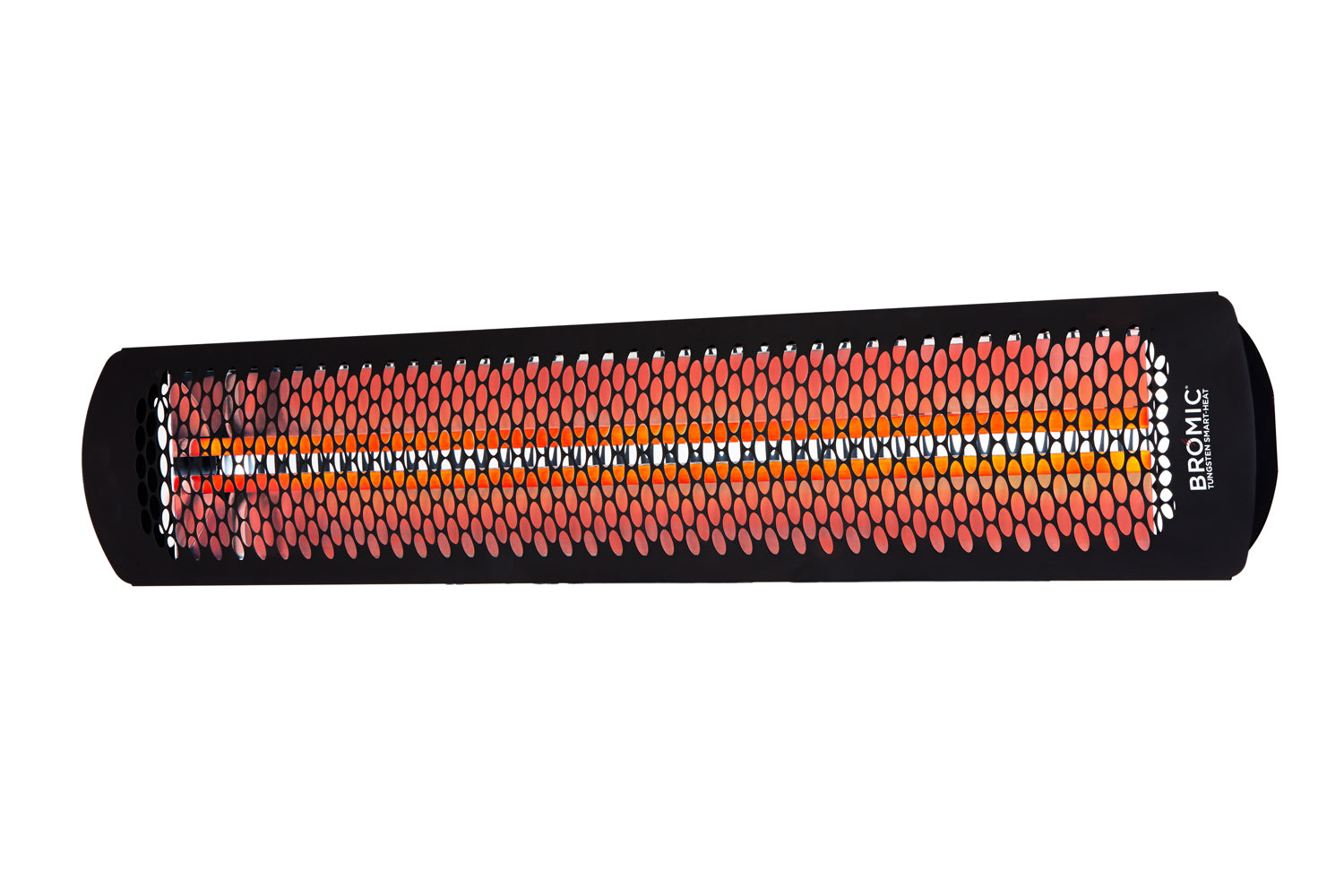

Bromic's Tungsten pairs a honeycomb mesh screen with a quartz infrared element and a mirror-finish parabolic reflector, so it heats people and furniture directly instead of the air around them. The adjustable bracket lets you aim the heat, and optional recess and suspension kits let it sit flush in a ceiling or drop from a high one.
Warms up to 120 sq. ft. of patio, dining or bar seating. High Performance Mesh Screen
Honeycomb front spreads infrared heat evenly with a soft red glow. Quartz Element and PSR Reflector
Durable quartz element with a mirror-finish reflector that pushes heat forward. Adjustable Bracket Included
Wall or ceiling mounting, with optional recess and suspension kits. Smart Control Ready
Works with Bromic Affinity On/Off and Dimmer controls (sold separately) and the Bromic Heating app. IPX4 Rated
High-temperature, corrosion-resistant coating built for permanent installs.
| Series | Tungsten Smart-Heat™ Electric |
| Fuel Type | Electric |
| Wattage | 4000W (dual element) |
| Heat Coverage | Up to 120 sq. ft. |
| Recommended Mounting Height | 8-9ft |

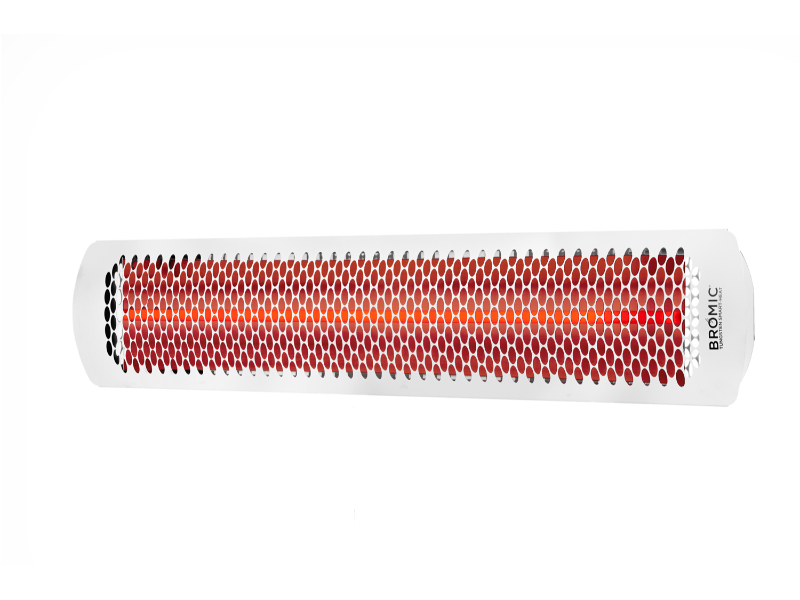

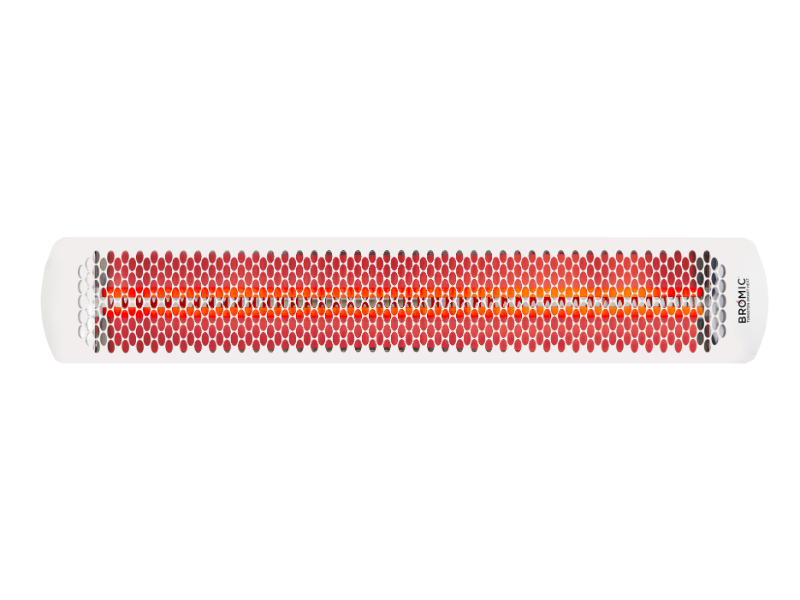

| Finish | Black or White |
| Voltage | 208V, 240V or 277V |
| Rated Current | 240V / 16.6A • 208V / 19.23A • 277V / 14.44A |
| Material / Finish | High-temperature corrosion-resistant coating |
| Dimensions | 44" W × 8.5" H × 3.5" D |
| Weight | 19.8 lbs |
| Minimum Floor Clearance | Wall Mount 72" • Ceiling Mount 96" |
| Front Clearance | 3ft |
| Spacing Between Heaters | 20" minimum |
| Approval Certification | Intertek ETL / cETL 4005951 |
| Ingress Rating | IPX4 |
| Control Options | Sold separately: Affinity On/Off • Affinity Dimmer • Manual Wall Switch |
| Model Numbers | 240V Black: BH0420032; 240V White: BH0420012; 208V Black: BH0420034; 208V White: BH0420037; 277V Black: BH0420042; 277V White: BH0420044 |
| Warranty | 2 years on the heater, 7 years on the heating elements (from date of purchase, original owner) |
The heater ships with a 9.5in mounting bracket that works for both wall and ceiling installs. For high ceilings, add the 3ft suspension kit; for a flush built-in look, choose a ceiling recess kit in black or white. Controls are not included and are sold separately. Add a Bromic Affinity On/Off or Dimmer control to run it from the free Bromic Heating app, or wire it to a Bromic dual wall switch.
How much area does the Bromic Tungsten 4000W heater cover?
Up to 120 square feet, based on Bromic's rating for a sheltered space with the heater mounted at 8ft. Open, cold or windy spots get less. For a smaller space the 3000W (100 sq. ft.) is enough; for more reach choose the 6000W (144 sq. ft.) or use several heaters.
What electrical supply does it need?
It is hardwired on 208V, 240V or 277V. Rated current: 240V / 16.6A, 208V / 19.23A, 277V / 14.44A. Bromic requires installation by a licensed electrician to local code.
How high should it be mounted?
Bromic recommends about 8-9ft. The minimum is 72" from the floor on a wall mount and 96" on a ceiling mount. Leave 3ft of open space in front and at least 20" between heaters.
Can it be used indoors or under a covered patio?
Yes. Bromic rates the Tungsten Electric for indoor and outdoor spaces such as covered patios, restaurants, bars and hotels. It is not for bathrooms, laundry rooms or similar wet indoor areas.
Is it waterproof?
It is IPX4 rated against splashing water. For outdoor installs, Bromic recommends mounting it under cover, protected from rain and weather where possible, with the face angled down. Use IPX4 rated conduit fittings and cord grips to keep that rating.
How do I control a Bromic Tungsten electric heater?
Controls are sold separately. Pair it with a Bromic Affinity On/Off or Affinity Dimmer control to run it from the free Bromic Heating app, with timers and schedules, or wire it to a Bromic dual wall switch. The Dimmer adjusts heat output in 1% steps.
What are the model numbers?
240V Black: BH0420032; 240V White: BH0420012; 208V Black: BH0420034; 208V White: BH0420037; 277V Black: BH0420042; 277V White: BH0420044.
Electric patio heaters must be installed in accordance with local electrical codes. Improper installation may result in property damage or injury. Professional installation is recommended.
