The Broil King Regal Q 690 Pro IR is a premium Wi-Fi enabled 6-burner gas grill built for grillers who want large-capacity cooking, smart temperature control, and true multi-zone flexibility. With 1,030 square inches of total cooking space across two independent ovens, this flagship grill makes it easier to cook different foods at different temperatures while maintaining the strong heat output and premium construction Broil King is known for.
This model features iQue™ Wi-Fi and Bluetooth control, six Dual-Tube™ stainless steel burners producing 60,000 BTUs, a 10,000 BTU infrared side burner for high-heat searing, and a 15,000 BTU rear rotisserie burner with premium rotisserie kit. With 9mm solid stainless steel rod grids in the main oven, cast iron grids in the secondary oven, illuminated control knobs, built-in oven lights, and a fully enclosed cabinet base, the Regal Q 690 Pro IR is designed for serious outdoor cooking in either liquid propane or natural gas configurations.
Six Dual-Tube™ stainless steel burners deliver a combined 60,000 BTUs across two independently controlled cooking zones. Infrared Side Burner
A 10,000 BTU infrared side burner provides intense direct heat for steakhouse-style searing and fast finishing. Rear Rotisserie Burner
The 15,000 BTU rear burner and included premium rotisserie kit expand your cooking options beyond standard grilling. Dual-Oven Cooking Design
Two independent ovens make it easier to separate cooking zones and handle larger meals with more flexibility.

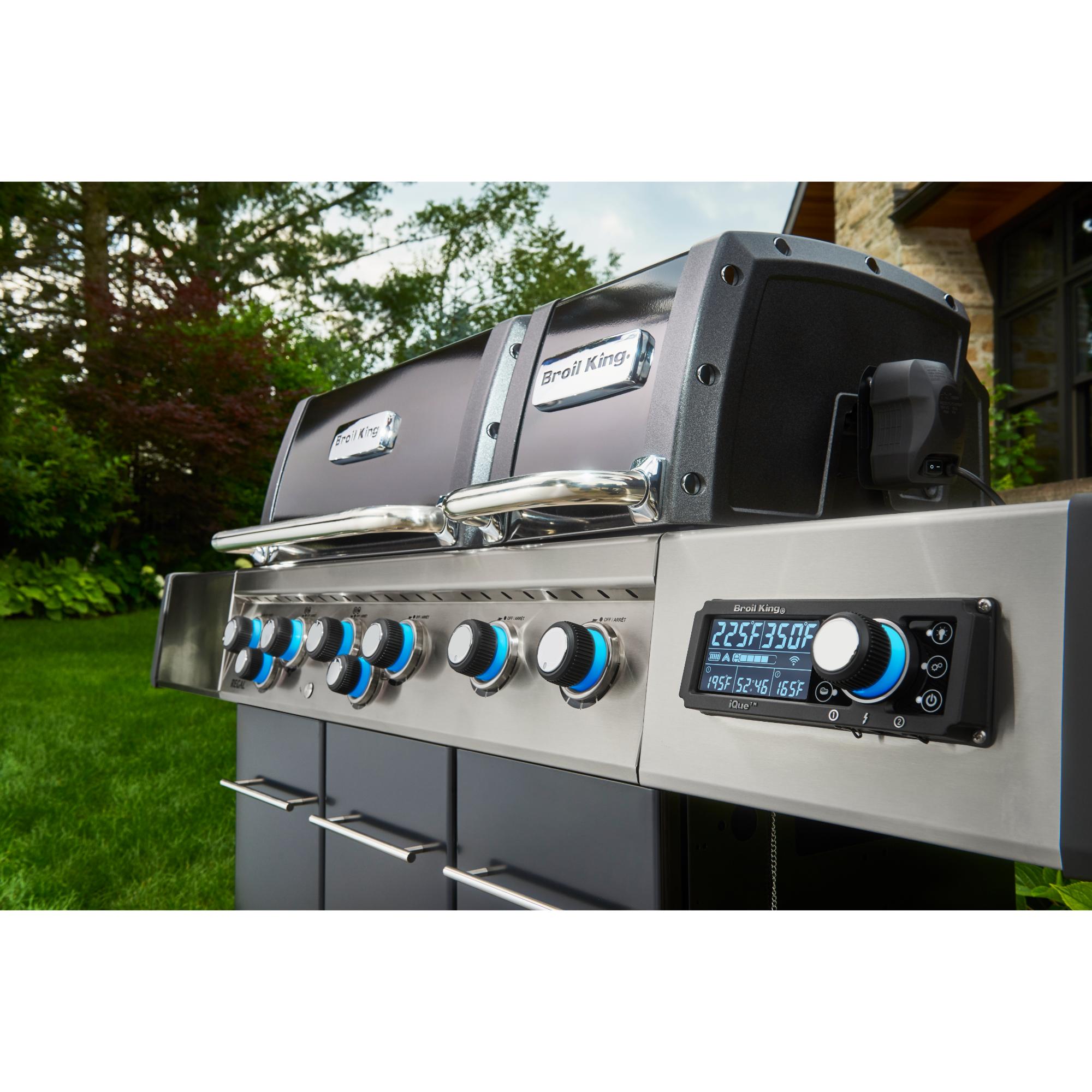

Integrated Wi-Fi and Bluetooth connectivity adds app-based monitoring and control for a more connected grilling experience. Premium Cooking Surfaces
The main oven uses 9mm solid stainless steel rod grids, while the smaller oven uses cast iron cooking grids for added versatility. Large Cooking Capacity
With 1,030 square inches of total cooking space, this grill is built for entertaining, multi-item meals, and larger cookouts. Premium Convenience
Illuminated control knobs, built-in oven lights, stainless steel side shelves, and an enclosed cabinet base give the grill a more refined and practical finish.
Sure-Lite™ electronic dual-electrode ignition is designed for dependable burner lighting and quick startup. Precision Heat Control
Linear-Flow™ valves with 180° Sensi-Touch™ control help fine-tune burner output across both cooking zones.
| Fuel Type | Liquid Propane or Natural Gas |
| Model Numbers | 689244 (Propane) / 689247 (Natural Gas) |
| Total Cooking Area | 1,030 sq. in. |
| Primary Cooking Area | 750 sq. in. (main oven) + 250 sq. in. (secondary oven) |
| Main Burner Output | 60,000 BTUs |
| Side Burner Output | 10,000 BTU Infrared Side Burner |
| Rear Burner Output | 15,000 BTU Rear Rotisserie Burner |
| Cooking Grids | 9mm Solid Stainless Steel Rod Grids (main oven) + Cast Iron Grids (secondary oven) |
| Ignition System | Sure-Lite™ Electronic Dual-Electrode |
| Thermometers | 2 x Deluxe Accu-Temp™ Lid Thermometers |
| Connectivity | iQue™ Wi-Fi & Bluetooth Control |
| Lighting | Illuminated Control Knobs + Built-In Oven Lights |
| Dimensions (W x D x H) | 70" x 24.8" x 49.2" |
| Weight | 270 lbs |
Propane models are designed for use with a standard 20 lb. propane tank. Tank not included. Natural Gas Configuration
Natural gas models require connection to a fixed natural gas line and include a 10 ft. natural gas hose.
Gas-operated appliances must be installed in accordance with local building and fire codes. Improper installation may result in property damage or injury. Professional installation is recommended.
