The Blaze Drop-In Single Side Burner is a compact built-in cooking station designed to expand the capability of your outdoor kitchen for sauces, soups, side dishes, and other stovetop-style cooking tasks. Built from stainless steel and fitted with a heavy-duty 12,000 BTU brass burner, it delivers dependable heat output in a durable outdoor-ready design.
This side burner features a push-and-turn ignition system for reliable lighting, a stainless steel cooking grate, and a removable stainless steel cover that helps shield the burner when not in use. Designed for built-in installation, it fits neatly into non-combustible outdoor kitchen islands and is offered for natural gas or liquid propane applications.
Blaze Drop-In Single Side Burner Main Burner

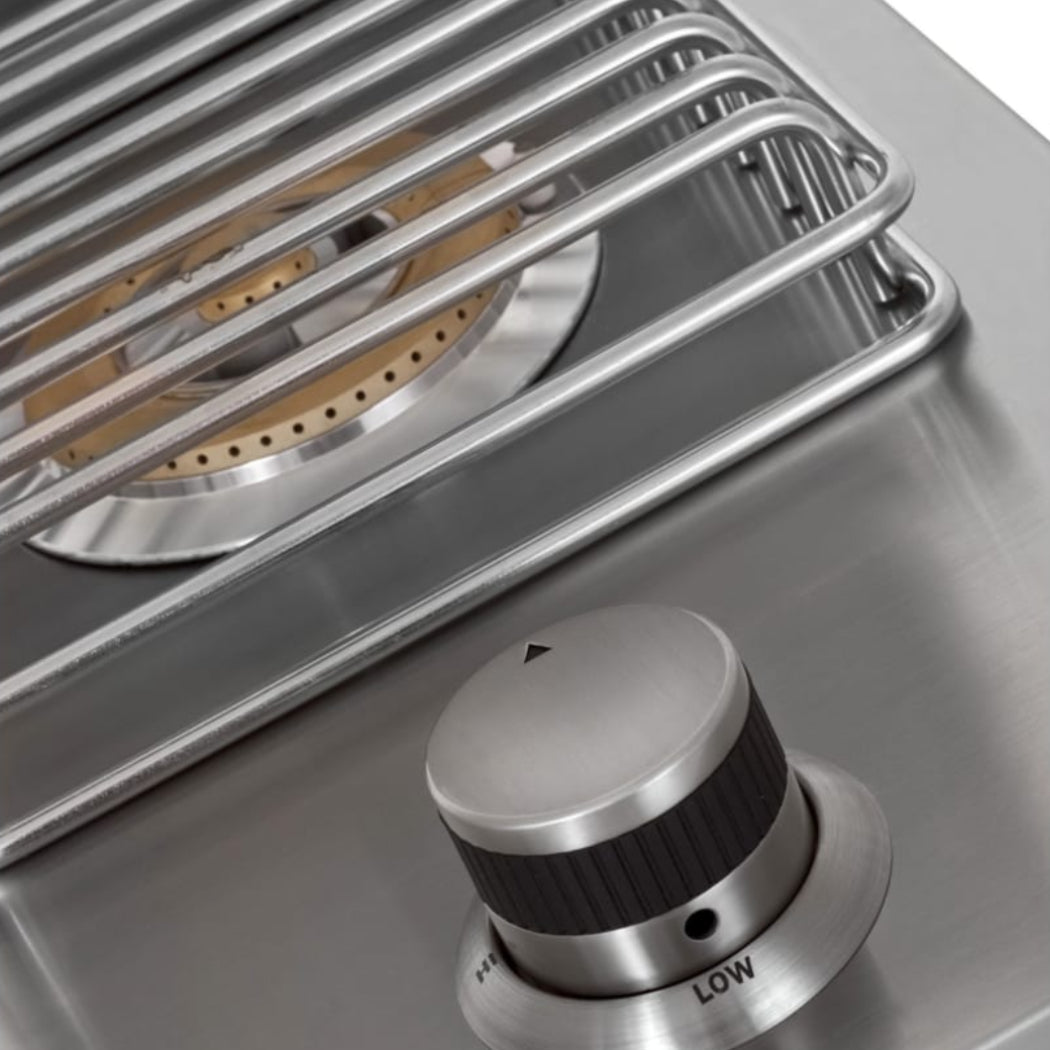

12,000 BTU Heavy-Duty Brass Burner Cooking Grate
Stainless Steel Burner Grate Burner Cover
Stainless Steel Lid/Cover Ignition Controls
Push-and-Turn Control Knob with Electronic Ignition
- 12,000 BTU Brass Burner: Heavy-duty brass burner delivers strong, focused heat for side dishes, boiling, sautéing, and pan cooking outdoors.
- Built-In Convenience: Drop-in design integrates cleanly into a custom outdoor kitchen island.
- Stainless Steel Construction: Durable stainless steel body is designed to hold up in outdoor environments.

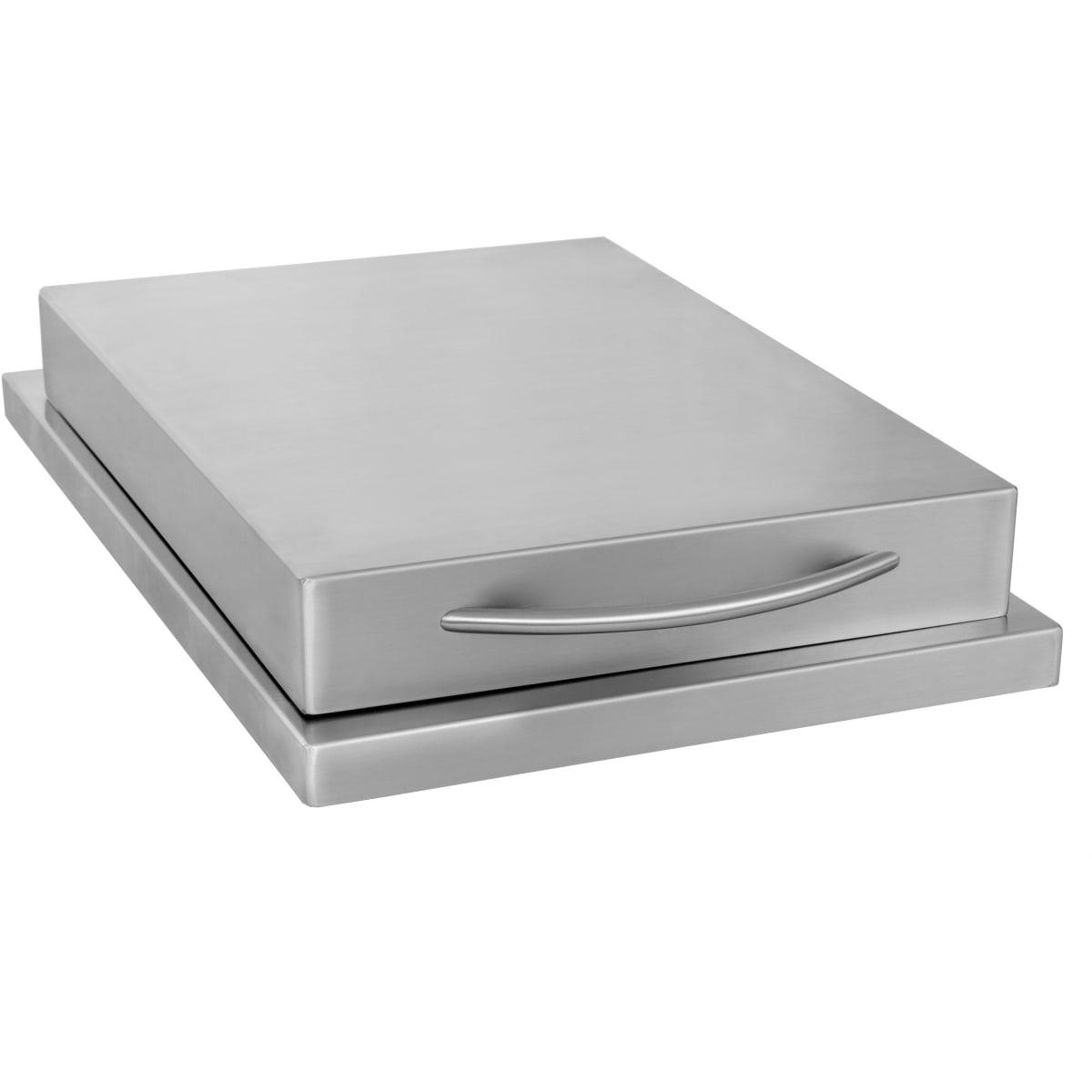

- Protective Stainless Cover: Included cover helps shield the burner from outdoor debris and weather exposure when not in use.
- Reliable Ignition: Push-and-turn ignition system is designed for simple, dependable burner lighting.
Push-and-turn electronic ignition for reliable startup. Fuel Compatibility
Available for Natural Gas or Liquid Propane applications.
| Product Type | Drop-In Single Side Burner |
| Configuration | Built-In |
| Style | Conventional |
| Number of Burners | Single (1) Burner |
| Main Burner Output | 12,000 BTU |
| Burner Material | Brass |
| Body Material | Stainless Steel |
| Overall Dimensions | 4 1/2" H x 12 1/2" W x 19 1/2" D |
| Cutout Dimensions | 2 13/16" H x 11 1/4" W x 18" D |
| Connection Size | 3/8" |
| Model | BLZ-SB1-LP / BLZ-SB1-NG |
- This appliance is for outdoor use only. Do not install or operate it in a garage, building, or other enclosed area.
- Built-in installation must be done in a non-combustible enclosure. If the island is made from combustible materials, an insulated jacket is required.
- Maintain at least 16" clearance from the sides and 16" from the back to combustible materials.
- The island cavity must be adequately ventilated to support combustion and help prevent gas buildup.
- Always ensure the gas supply line, shutoff valve, regulator, and connections remain accessible after installation.
- Leak test all gas connections before first use and before each use using a soapy water solution. Never test for leaks with an open flame.
- Never light or operate the burner with the stainless steel cover in place.
- Use caution when lighting. If the burner does not ignite within 5 seconds, turn it off and wait 5 minutes before trying again.
This appliance is for outdoor use only and must be installed in accordance with local building and fire codes. Improper installation or inadequate ventilation may result in property damage or injury. Professional installation is recommended.
