American Made Grills Atlas 36-Inch Built-In Gas Grill — 49,500 BTU w/ Flame Thrower Ignition | Made in USA

Sale price$4,335.00 USD
You Save
Fuel Type:
30 Day Returnsi Price Match Full Warranty Expert Support
All Season Patio specialist
Need help or have a question? (716) 351-5131 Mon to Sun, 8am to 9pm EST
Call now
Description

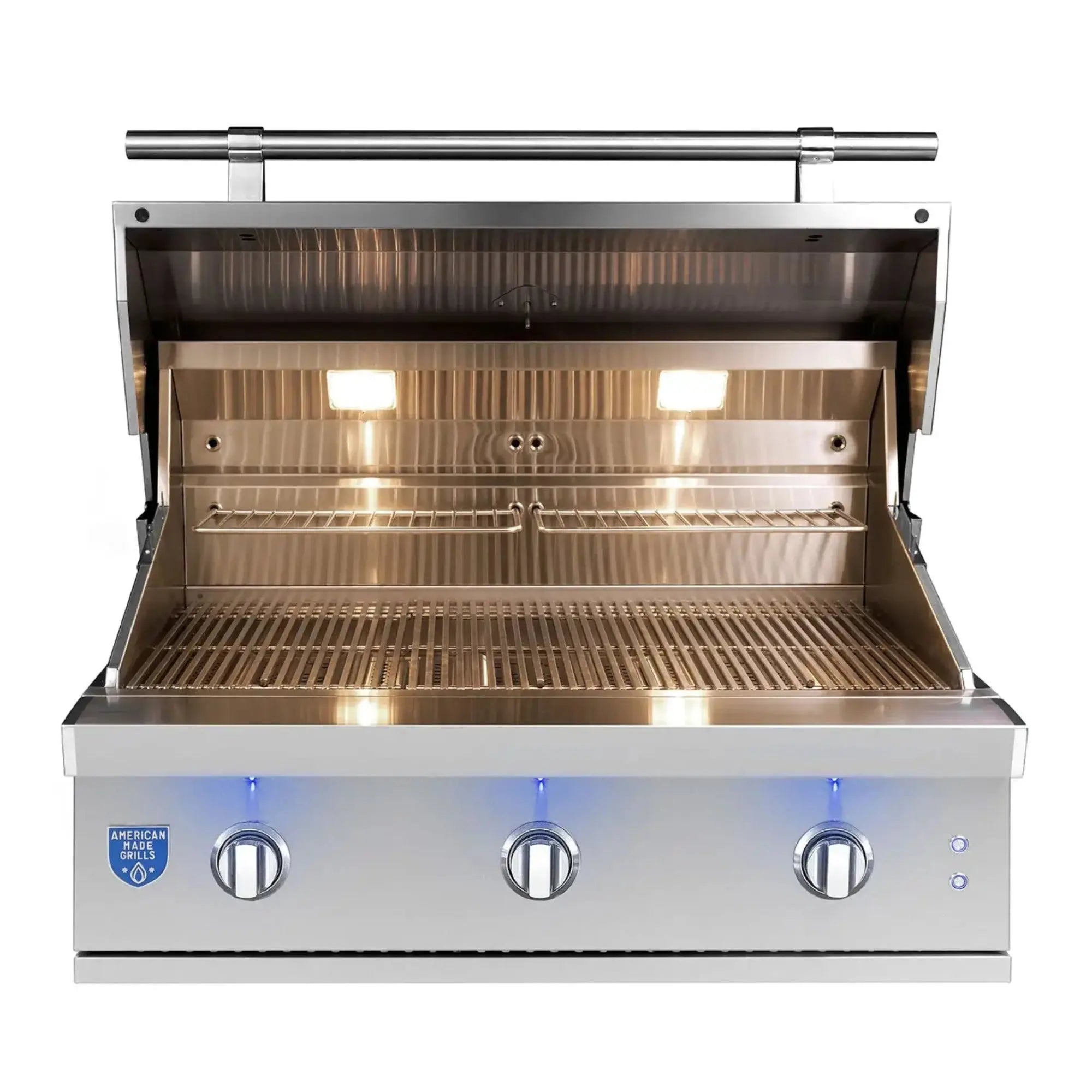

The American Made Grills Atlas 36" Built-In Gas Grill (ATS36-B) is a 49,500-BTU built-in gas grill designed for permanent outdoor kitchen islands. Built and factory-tested in Huntington Beach, California from 304 stainless steel, it runs on three 16,500-BTU U-tube burners delivering consistent heat across 853 square inches of total cooking surface. The Atlas sets itself apart with 8mm square-profile stainless grates — the flat contact face produces wider, more defined sear marks versus round-rod alternatives. Dual-position warming racks, ceramic easy-clean briquette trays, flame thrower ignition, halogen interior lights, and LED-backlit control knobs are all included. Backed by AMG's Gold Standard Lifetime Warranty.

What's Included
Atlas 36" Grill Head
NG or LP as selected
Ceramic Easy-Clean Briquette Trays Dual Multi-Position Warming Racks Slide-Out Drip Tray
Key Features
  • 8mm Square-Profile Stainless Steel Grates: The flat contact face increases food surface contact, producing wider, more defined sear marks than round-rod grate profiles.

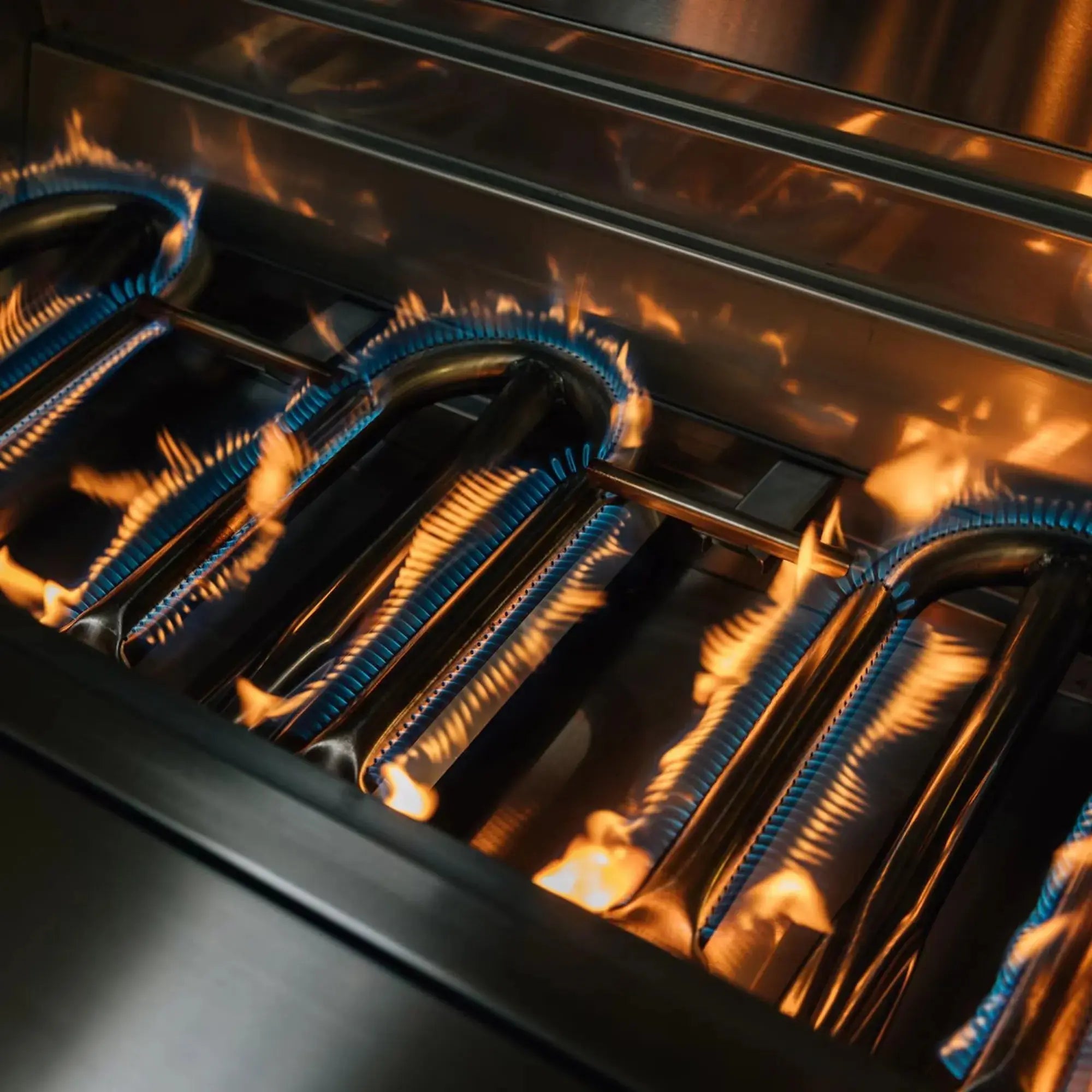

  • Three 16,500-BTU U-Tube Burners: Three independent zones allow multi-temperature cooking across the 36" cooking surface. Total output: 49,500 BTU.

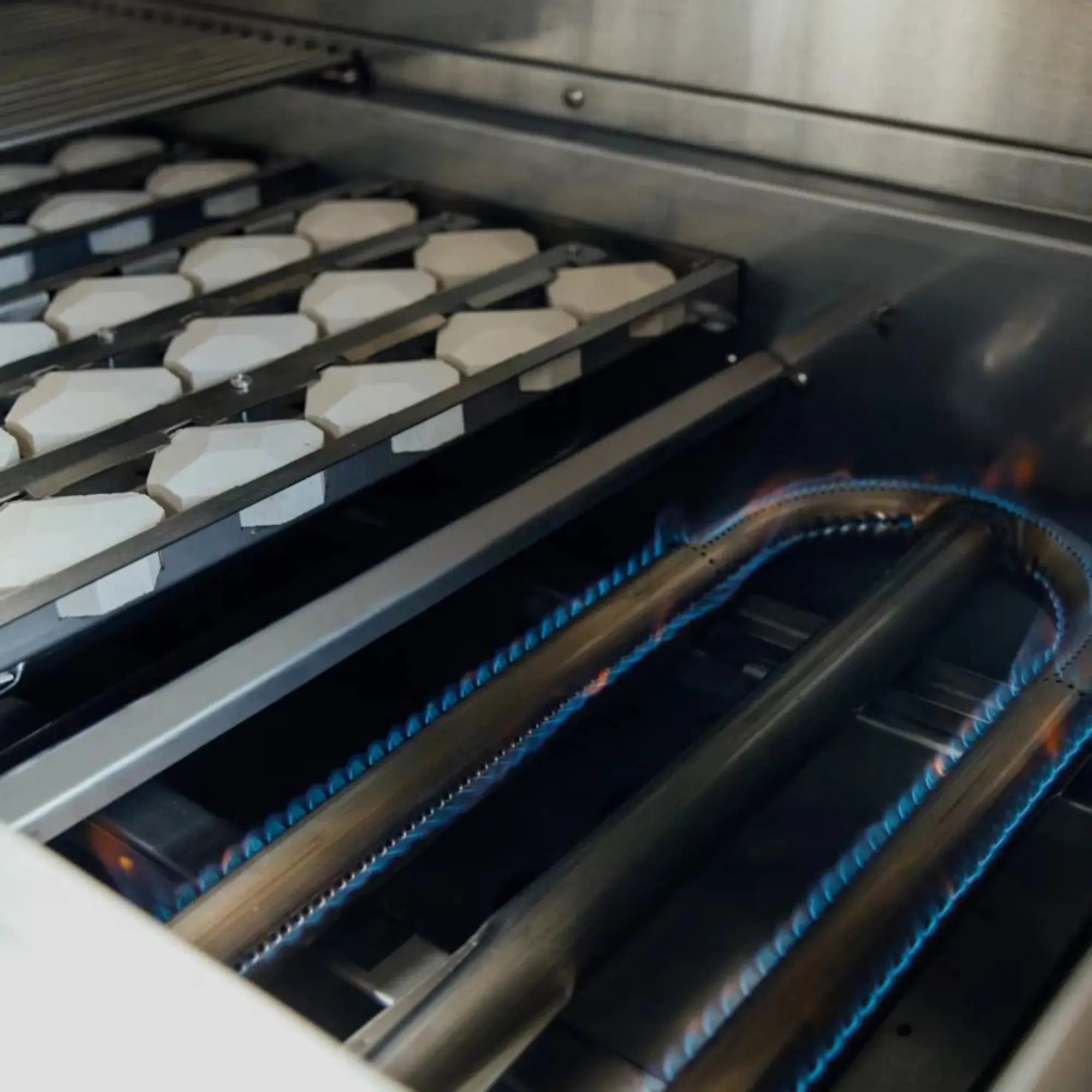

  • Ceramic Easy-Clean Briquette System: Briquettes absorb and re-radiate heat evenly, suppress flare-ups, and slide out for cleaning without removing the grates.
  • Flame Thrower Ignition: A direct burst of flame lights each burner reliably — more consistent than standard spark ignition systems, especially in wind or cold conditions.

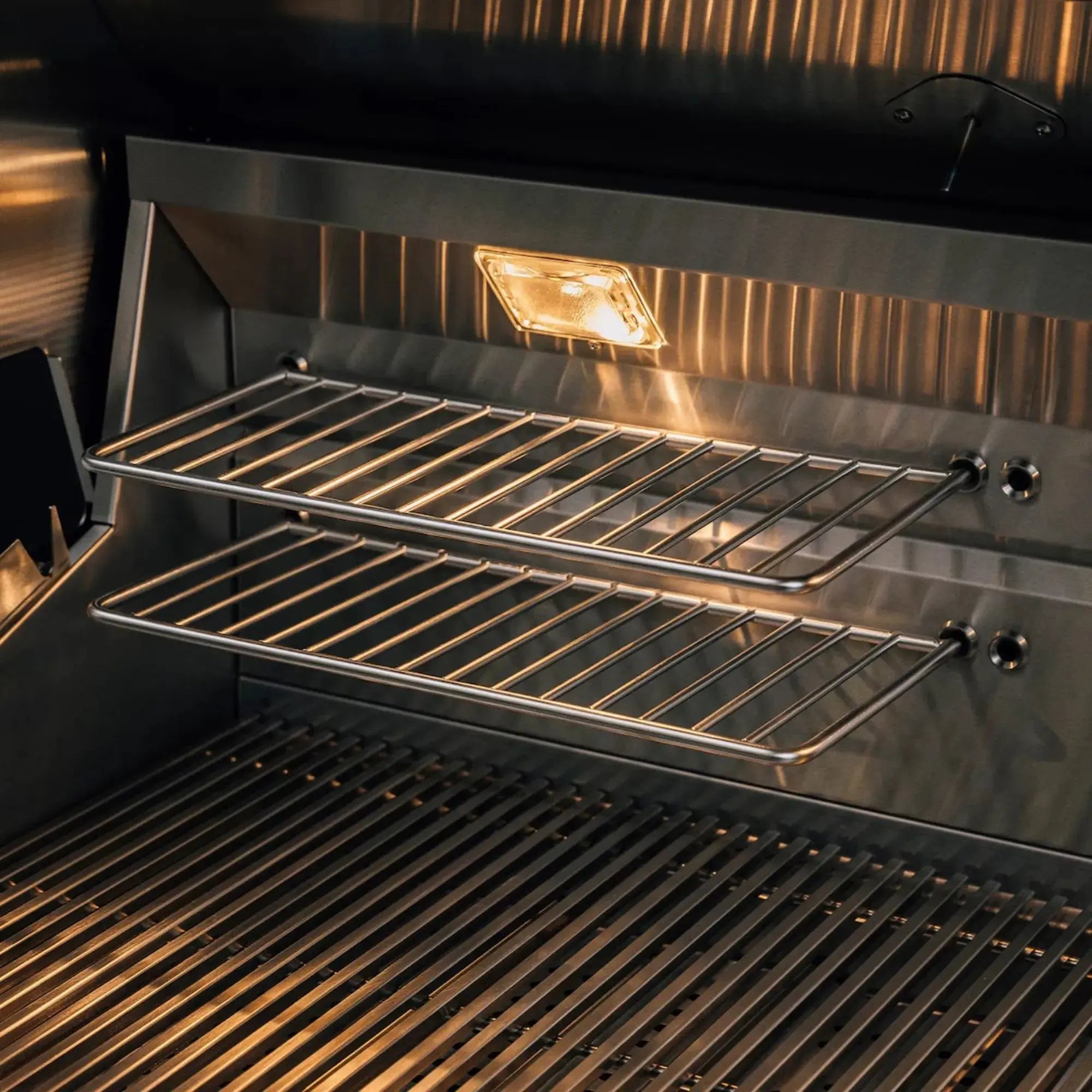

  • Dual-Position Warming Racks: Two adjustable positions let you hold finished food at different distances from the heat source while continuing to cook below.

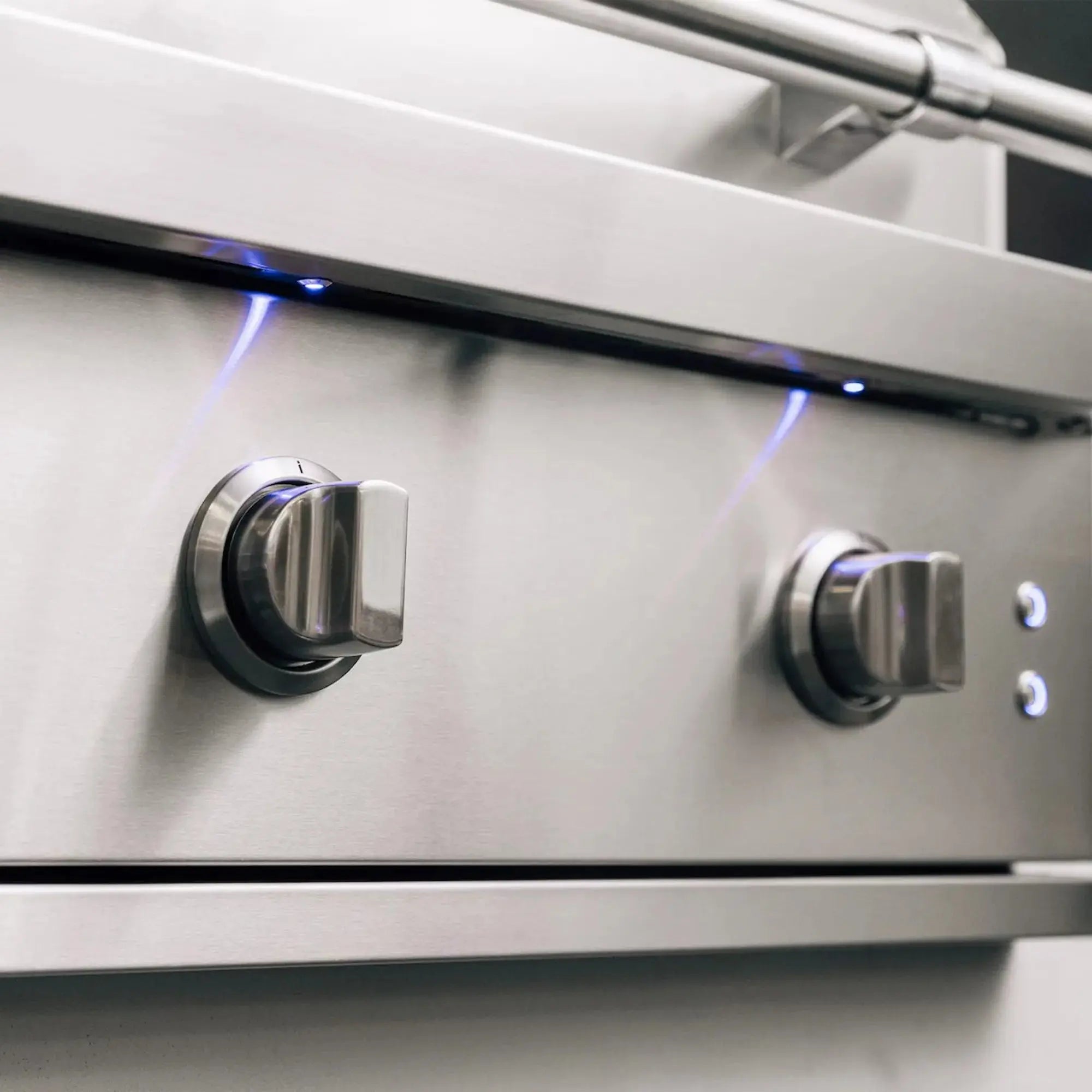

  • Interior Halogen + LED Knob Lighting: Halogen lamps illuminate the cooking surface directly; LED-backlit control knobs keep settings visible after dark.
Product Specifications
SKU ATS36-B-NG (Natural Gas) | ATS36-B-LP (Liquid Propane)
Grill Size 36"
Main Burners 3 U-tube stainless steel burners
Main Burner Output 16,500 BTU each
Total BTU 49,500 BTU
Primary Cooking Area 628 sq. in.
Total Cooking Area (w/ warming racks) 853 sq. in.
Cooking Grate Material 8mm square-profile stainless steel
Body Material 304 stainless steel
Hood Construction 18-gauge double-lined stainless, spring-assisted
Ignition Flame Thrower with manual flush-tube backup
Fuel Type Natural Gas or Liquid Propane (specify at order)
Warranty Gold Standard Lifetime Warranty on structural components; 3-Year Warranty on electronics.
Cutout Dimensions (W × H × D) 34" × 10" × 19-3/4"
Overall Dimensions (W × H × D) 36" × 26" × 26"
Country of Origin USA (Huntington Beach, California)
Installation & Use Notes
  • Gas type (NG or LP) must be specified at time of order. Not field-convertible without proper AMG hardware.
  • If installing in a combustible island, an AMG insulating grill liner (GL-ATS36) is required by building code.
  • Confirm island cutout dimensions against the AMG installation manual before cutting.
  • Electrical connection (standard outlet) required for interior lighting only. Gas burners operate without electrical power.
Ordering Notes
  • Fuel type (NG or LP) must be specified at checkout.
  • Insulated grill liner for combustible island installation is sold separately (GL-ATS36).
  • Rotisserie kit is sold separately — confirm Atlas-compatible SKU before ordering.
Safety Information
Gas Connection
Installation must be performed by a licensed gas technician. Confirm gas type, line size, and BTU supply before installation.
Clearances
Maintain minimum clearances from combustible materials per the installation manual. Never install closer than specified.
Combustible Island
If installing in a combustible island (wood framing, composite, stucco over wood), an AMG insulating grill liner is required by building code. Liner is sold separately.
Outdoor Use Only
This grill is designed for outdoor use only. Never operate in an enclosed structure or under a covered patio without ventilation rated for gas appliances.
Proposition 65 Warning
Some products sold on this website can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
